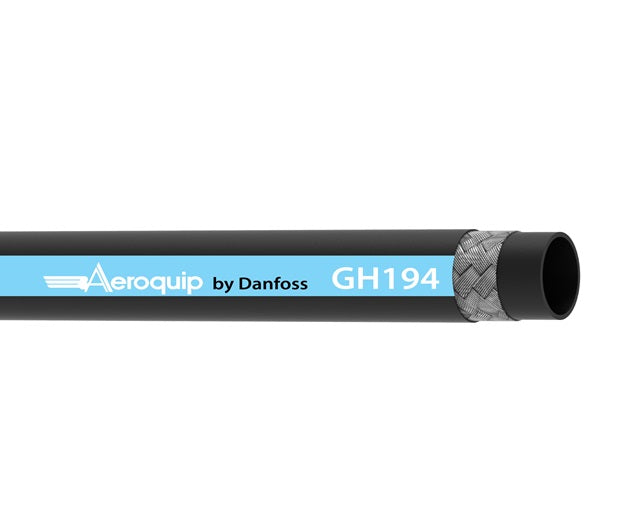

GH194-8 Aeroquip by Danfoss | HI-IMPULSE MatchMate® Global Premium High Temperature Single Wire Braid Hydraulic Hose | SAE 100R1AT | 0.50" ID

GH194-8 Aeroquip by Danfoss | HI-IMPULSE MatchMate® Global Premium High Temperature Single Wire Braid Hydraulic Hose | SAE 100R1AT | 0.50" ID

Minimum Order Quantity: 400 Feet

$14.35 - $14.35
$14.35
$14.35 - $14.35
$14.35

Aeroquip® by Danfoss
GH194 Series | HI-IMPULSE MatchMate® Global Premium High Temperature Single Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Specifications for Variant SKU: GH194-8RL Danfoss
Brand: Aeroquip, MatchMate
Series: GH194 Series
Hose Color(s): Blue
Dash Size: -8
Internal Diameter: 0.50in
Outer Diameter: 0.81in
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, EN853, ISO 1436-1, SAE 100R1 Type S
Compatible with the following Series: 1AA MatchMate Series
Hose Properties:
Application: Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids. SAE Rating: Meets or exceeds: SAE 100R1AT Type S, EN 853 1SN, ISO 1436-1 Type 1SN performance.
Other Ratings: MSHA Accepted, ABS Accepted, DNV Accepted Tube: AQP elastomer CPE
Reinforcement: Single Wire Braid Cover: Blue CPE
Temperature Range: -40°F to + 302°F
(-40°C to + 150°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH194-4 6 6,4mm 0.25" 13,5mm 0.53" 225 bar 3,250 psi 900 bar 13,000 psi 100,0mm 3.94" 0,25 kg/m 0.17 lbs/ft
GH194-6 10 9,5mm 0.38" 17,3mm 0.68" 215 bar 3,125 psi 860 bar 12,500 psi 125,0mm 4.92" 0,37 kg/m 0.25 lbs/ft
GH194-8 12 12,7mm 0.50" 20,4mm 0.80" 175 bar 2,550 psi 700 bar 10,200 psi 180,0mm 7.09" 0,45 kg/m 0.30 lbs/ft
GH194-10 16 15,9mm 0.62" 23,8mm 0.94" 140 bar 2,050 psi 560 bar 8,200 psi 205,0mm 8.07" 0,54 kg/m 0.36 lbs/ft
GH194-12 19 19,0mm 0.75" 27,4mm 1.08" 125 bar 1,800 psi 500 bar 7,200 psi 240,0mm 9.45" 0,69 kg/m 0.46 lbs/ft
GH194-16 25 25,4mm 1.00" 36,2mm 1.42" 90 bar 1,300 psi 360 bar 5,200 psi 300,0mm 11.81" 0,98 kg/m 0.66 lbs/ft
GH194-20 31 31,8mm 1.25" 43,9mm 1.73" 65 bar 950 psi 260 bar 3,800 psi 420,0mm 16.54" 1,26 kg/m 0.85 lbs/ft
GH194-24 38 38,1mm 1.50" 50,6mm 1.99" 50 bar 725 psi 200 bar 2,900 psi 500,0mm 19.69" 1,58 kg/m 1.06 lbs/ft
GH194-32 51 50,8mm 2.00" 64,0mm 2.52" 40 bar 580 psi 160 bar 2,320 psi 630,0mm 24.80" 2,04 kg/m 1.37 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
