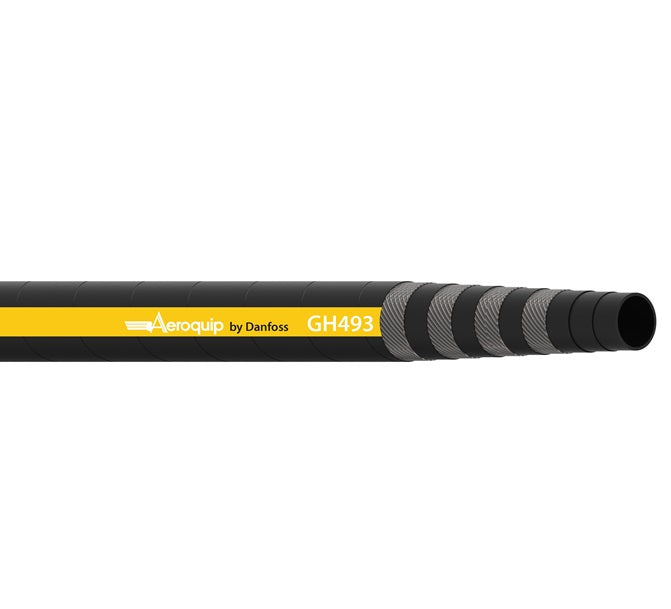

GH493-32 Aeroquip by Danfoss | MatchMate® Global 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose | SAE 100R12 | 2.00" ID


Aeroquip® by Danfoss
GH493 Series | MatchMate® Global 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose

For very high pressure hydraulic lines subjected to pressure surges and flexing.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH493-32 Danfoss
Brand: Aeroquip
Series: GH493 Series
Hose Color(s): Black
Dash Size: -32
Internal Diameter: 2.00in
Outer Diameter: 2.64in
MAWP: 4000
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS,Applicable MSHA Standards,DNV,EN856,EN856 Type R12,ISO 3862 Type R12,SAE 100R12,USCG
Hose Properties:
Application: Typical applications include construction, mining, farming and high performance industrial equipment. SAE Rating: Meets or exceeds: SAE 100R12, EN 856 Type R12, ISO 18752, ISO 3862 Type R12, EN 856 4SP performance (-8 thru -16)
Other Ratings: MSHA Accepted, ABS Accepted Tube: Synthetic Rubber
Reinforcement: 4-Spiral Wire Cover: DURA-TUFF™ Synthetic Rubber
Temperature Range: -40°F to +260°F
(-40°C to +126°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH493-6 10 9,5mm 0.38" 20,2mm 0.80" 448,0 bar 6500 psi 1792,0 bar 26000 psi 62,5mm 2.46" 0,71 kg/m 0.48 lbs/ft
GH493-8 12 12,7mm 0.50" 23,6mm 0.93" 415,0 bar 6000 psi 1660,0 bar 24000 psi 90,0mm 3.54" 0,87 kg/m 0.59 lbs/ft
GH493-10 16 15,9mm 0.62" 27,4mm 1.08" 415,0 bar 6000 psi 1660,0 bar 24000 psi 100,0mm 3.94" 1,00 kg/m 0.68 lbs/ft
GH493-12 19 19,0mm 0.75" 30,7mm 1.21" 380,0 bar 5500 psi 1520,0 bar 22000 psi 120,0mm 4.72" 1,34 kg/m 0.90 lbs/ft
GH493-16 25 25,4mm 1.00" 37,9mm 1.49" 350,0 bar 5100 psi 1400,0 bar 20400 psi 150,0mm 5.91" 1,78 kg/m 1.20 lbs/ft
GH493-20 31 31,8mm 1.25" 46,6mm 1.84" 310,0 bar 4500 psi 1240,0 bar 18000 psi 210,0mm 8.27" 2,41 kg/m 1.62 lbs/ft
GH493-24 38 38,1mm 1.50" 53,9mm 2.12" 275,0 bar 4000 psi 1100,0 bar 16000 psi 250,0mm 9.84" 3,00 kg/m 2.01 lbs/ft
GH493-32 51 50,8mm 2.00" 66,8mm 2.63" 275,0 bar 4000 psi 1100,0 bar 16000 psi 320,0mm 12.60" 4,37 kg/m 2.94 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
