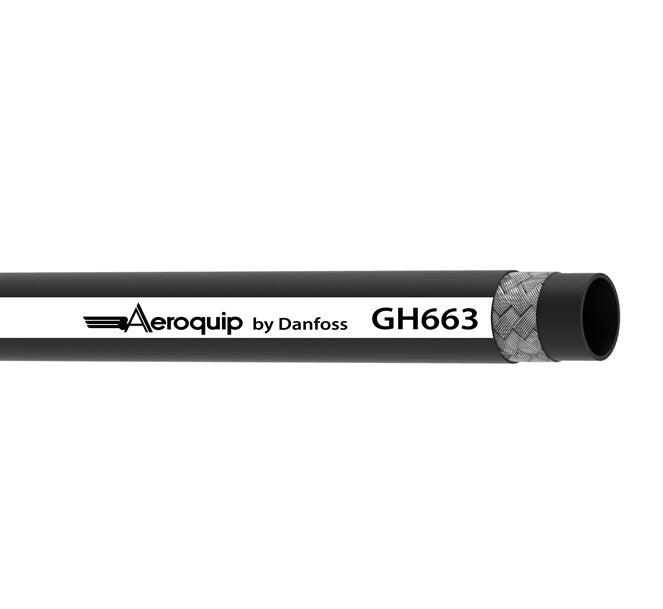

GH663-8 Aeroquip by Danfoss | MatchMate® Global 1/2 SAE Bend Radius Single Wire Braid Hydraulic Hose | SAE 100R19 | 0.50" ID

$6.98

Aeroquip® by Danfoss
GH663 Series | MatchMate® Global 1/2 SAE Bend Radius Single Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Bulk Lengths may come in multiple sections unless otherwise stated.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH663-8 Danfoss
Brand: Aeroquip
Series: GH663 Series
Hose Color(s): Black
Dash Size: -8
Internal Diameter: 0.50in
Outer Diameter: 0.81in
MAWP: 2900
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS,Applicable MSHA Standards,BV,BWB,DNV,EN45545,EN856,ISO 3862,LR,MED,RINA
Hose Properties:
Application: Hydraulic system service with petroleum and waterbased fluids, for general industrial service. SAE Rating: Meets or exceeds: SAE 100R1 Type S, EN 853 1SN, ISO 1436-1 Type 1SN, DIN 20 022 Type 1SN
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Single Wire Braid Cover: DURA-TUFF Synthetic Rubber
Temperature Range: (-50°F to +260°F)
(-46°C to +127°C)

Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH663-4 6 6,4mm 0.25" 13,5mm 0.53" 255,0 bar
192,0 bar
3700* psi
2750 psi
1020,0 bar
770,0 bar
14800* psi
11000 psi
51,0mm 2.00" 0,24 kg/m 0.16 lbs/ft
GH663-6 10 9,7mm 0.38" 17,5mm 0.69" 235,0 bar
157,0 bar
3400* psi
2250 psi
940,0 bar
630,0 bar
13600* psi
9000 psi
62,5mm 2.50" 0,37 kg/m 0.25 lbs/ft
GH663-8 12 12,7mm 0.50" 20,6mm 0.81" 200,0 bar
140,0 bar
2900* psi
2000 psi
800,0 bar
560,0 bar
11600* psi
8000 psi
90,0mm 3.50" 0,45 kg/m 0.30 lbs/ft
GH663-12 19 19,1mm 0.75" 27,8mm 1.09" 138,0 bar
87,0 bar
2000* psi
1250 psi
552,0 bar
350,0 bar
8000* psi
5000 psi
120,0mm 4.75" 0,67 kg/m 0.45 lbs/ft
GH663-16 25 25,4mm 1.00" 35,8mm 1.41" 103,0 bar
70,0 bar
1500* psi
1000 psi
412,0 bar
280,0 bar
6000* psi
4000 psi
150,0mm 6.00" 1,01 kg/m 0.68 lbs/ft
GH663-20 31 31,8mm 1.25" 43,4mm 1.71" 69,0 bar 1000 psi 276,0 bar 4000 psi 210,4mm 8.25" 1,31 kg/m 0.88 lbs/ft
GH663-24 38 38,1mm 1.50" 50,6mm 1.99" 52,0 bar 750 psi 208,0 bar 3000 psi 250,0mm 10.00" 1,56 kg/m 1.05 lbs/ft
GH663-32 51 50,8mm 2.00" 64,0mm 2.52" 41,0 bar 600 psi 164,0 bar 2400 psi 315,0mm 12.50" 1,95 kg/m 1.31 lbs/ft

* Improved performance when used with Global Crimp fittings

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
