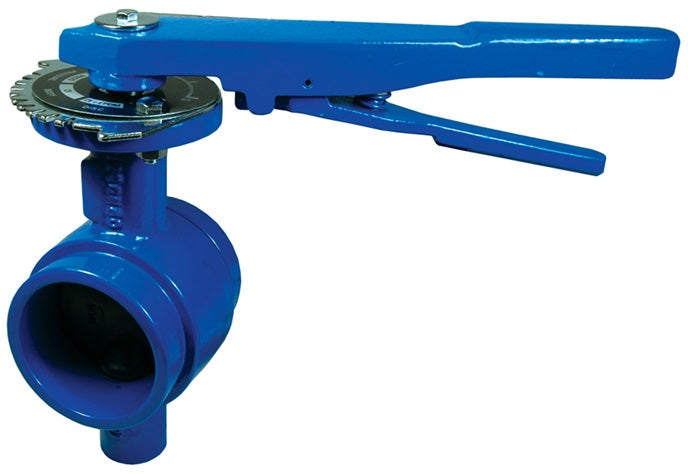

GIBFV200 by Dixon Valve | Grooved End Butterfly Valve | 2" Grooved End x 2" Grooved End | Ductile Iron

GIBFV200 by Dixon Valve | Grooved End Butterfly Valve | 2" Grooved End x 2" Grooved End | Ductile Iron

Save $94.48 Save $94.48
$291.20
$291.20 - $291.20
$291.20
$196.72
$196.72 - $196.72
$196.72

Dixon Valve
Grooved End Butterfly Valve | Grooved End x Grooved End

For water and air.
Specifications for Variant SKU: GIBFV200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Grooved End, 2in Grooved End, Some Ends Match
Material(s): Ductile Iron
Seal Material(s): EPDM
Construction:
  • Body: Epoxy Coated Ductile Iron
  • Disc: EPDM Encapsulated Ductile Iron
  • Stem: Stainless Steel
  • Notch plate: Zinc Plated Steel
Specifications:
  • Working pressure: 300 PSI
  • Maximum temperature: 210°F (99°C)
Ductile Iron
Part 		Size
GIBFV200 2"
GIBFV250 2-1/2"
GIBFV300 3"
GIBFV400 4"
GIBFV600 6"
GIBFV800 8"
