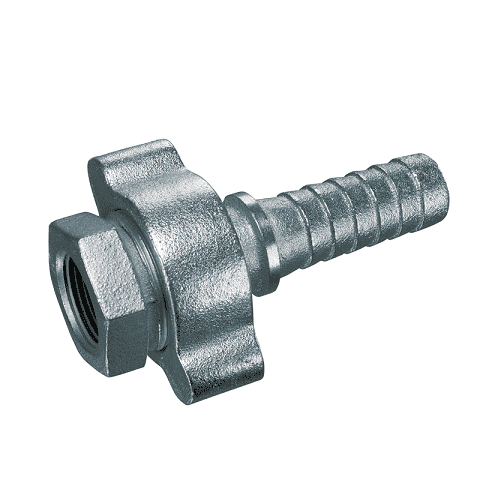

GJ-050 by Kuriyama | Ground Joint Coupling Complete Set | 1/2" | Zinc Plate

GJ-050 by Kuriyama | Ground Joint Coupling Complete Set | 1/2" | Zinc Plate

Save $0.47 Save $0.47
$16.86
$16.86 - $16.86
$16.86
$16.39
$16.39 - $16.39
$16.39

Kuriyama Couplings™ - Ground Joint Couplings - Complete Set - Zinc Plate - Hose Stem x Female NPT

Specifications for Variant SKU: GJ-050 Kuriyama
Shape (Orientation): Straight
Applications:
Features:
  • Interlocking Bolt Clamps recommended when assembling to a hose.
  • Hose Stem with Wing Nut and Female NPT Spud
  • Steam: 250 PSI
  • Air: 600 PSI
  • Temperature: 450 deg. F (+232 deg. C)
Materials:
  • N/A
Part Number Hose Stem Female NPT Weight (Lbs.)
GJ-050 1/2" 1/2" 0.75 lbs
GJ-075 3/4" 3/4" 1.86 lbs
GJ-100 1" 1" 1.81 lbs
GJ-125 1-1/4" 1-1/4" 3.73 lbs
GJ-150 1-1/2" 1-1/2" 3.68 lbs
GJ-200 2" 2" 5.69 lbs
GJ-250 2-1/2" 2-1/2" 12.59 lbs
GJ-300 3" 3" 15.85 lbs
GJ-400 4" 4" 28.46 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
