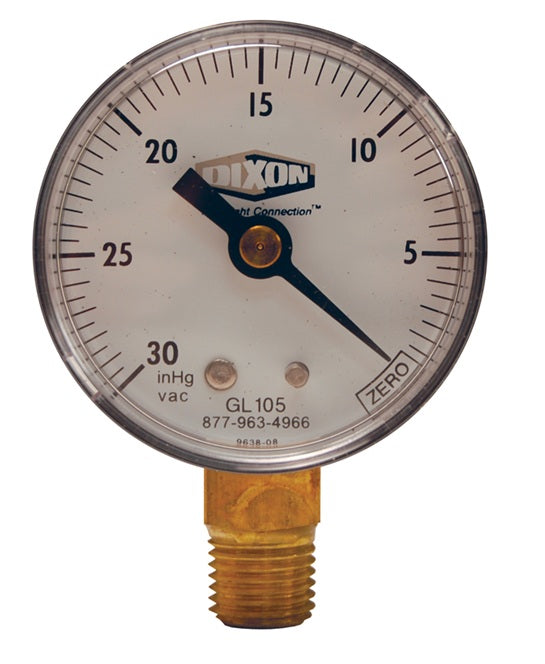

GL105 by Dixon Valve | Vacuum Gauge | Lower Mount | 2" Face | 1/4" Lower Mount | ABS Plastic

$14.58 - $14.58

$14.58

$19.36

$19.36 - $19.36

$19.36

Dixon Valve
Dixon® Gauge | Vacuum Gauge | Lower Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.

Quantity

Specifications for Variant SKU: GL105 Dixon
Series:	GL Series

Features:
ASME B40.1, Grade B accuracy (± 3-2-3 % accuracy).
Materials:
Case: ABS plastic Bourdon tube: bronze Crystal: polycarbonate Pointer: black aluminum Movement: powerflex with polyester segment, designed for extended wear
Specifications:
Temperature range: -40°F to 150°F (-40°C to 66°C)
Term Meanings:
Figure Interval: Figure Interval (Increments between PSI numbers on gauge face). Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).

2" Face 1/4" Lower Mount Part Number	2" Face 1/4" Center Back Mount Part Number	2-1/2" Face 1/4" Lower Mount Part Number	Mercury (Hg)	Figure Interval (Hg / PSI)	Minor Gradient (Hg / PSI)
GL105	GC205	GL305	30"	5"	5"
