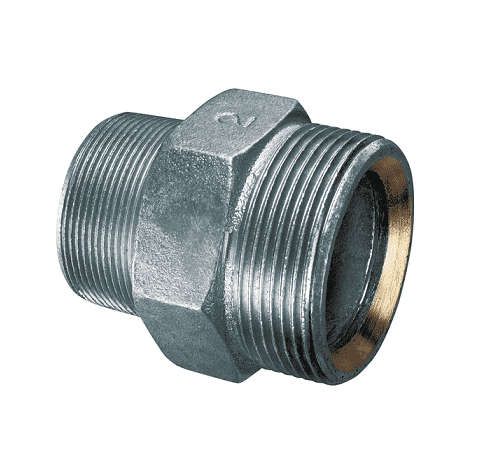

GMS-100 by Kuriyama | Ground Joint Coupling Male Spud with Copper Seal | 1" Male NPT x 1" Male NPS | Zinc Plate

Name: GMS-100 by Kuriyama | Ground Joint Coupling Male Spud with Copper Seal | 1" Male NPT x 1" Male NPS | Zinc Plate
Brand: Kuriyama
SKU: GMS-100 Kuriyama
Price: 12.76 USD
Availability: InStock

$11.68 - $11.68

$11.68

$12.76

$12.76 - $12.76

$12.76

Kuriyama Couplings™ - Ground Joint Couplings - Male Spud with Copper Seal - Male NPT x Male NPS - Zinc Plate

Quantity

Specifications for Variant SKU: GMS-100 Kuriyama
Shape (Orientation):	Straight
Seal Material(s):	Copper

Applications:
For use with Kuriyama Hoses
Features:
Interlocking Bolt Clamps recommended when assembling to a hose. Steam: 250 PSI Air: 600 PSI Temperature: 450 deg. F (+232 deg. C)
Materials:
N/A

Part Number	Male NPT	Male NPS	Weight (Lbs.)
GMS-050	1/2"	1/2"	0.29 lbs
GMS-075	3/4"	3/4"	0.75 lbs
GMS-100	1"	1"	0.79 lbs
GMS-125	1-1/4"	1-1/4"	1.43 lbs
GMS-150	1-1/2"	1-1/2"	1.7 lbs
GMS-200	2"	2"	2.23 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
