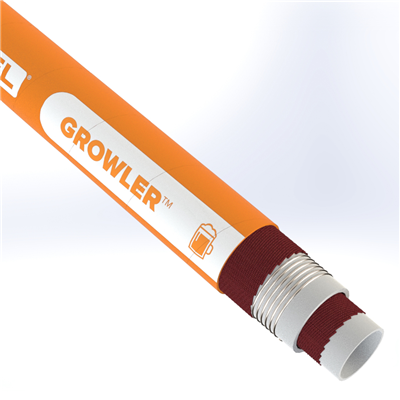

GRLR-.75-100 by Texcel | GROWLER™ Series | Brewery Hose | 3/4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Orange

$11.86 - $987.76

$11.86

$8.47

$8.47 - $705.54

$8.47

Texcel
GROWLER Series | Brewery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: GRLR-.75-100 Texcel \| 100 \|
Series:	GROWLER™ Series
Hose Color(s):	Orange
Internal Diameter:	0.75in
Outer Diameter:	1.22in
Tubing Construction:	Bromobutyl Rubber
Cover Construction:	EPDM

Technical Data:
Description:	A heavy-duty brewery hose formulated for the suction and delivery of beer, wine, alcohol, and soft drinks. FDA and USDA compliant, designed to ensure food quality and taste.	Tube:	White, BIIR (BUTYL)
Cover:	Orange, EPDM	Reinforcement:	High strength synthetic plies with steel helix
Safety Factor:	3:1	Temperature:	-40°F to +248°F
Branding:	TEXCEL® GROWLER™ BREWERS HOSE 150PSI (10 BAR) W.P. TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE	Safety Note:	It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features:	FDA, USDA compliant

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
GRLR-.75-100	3/4"	1-1/4"	150 psi	29	1.5"	0.48 lbs
GRLR-1.0-100	1"	1-29/64"	150 psi	29	1.75"	0.58 lbs
GRLR-1.25-100	1-1/4"	1-47/64"	150 psi	29	3"	0.74 lbs
GRLR-1.5-100	1-1/2"	1-62/64"	150 psi	29	4"	0.97 lbs
GRLR-2.0-100	2"	2-33/64"	150 psi	29	6"	1.26 lbs
