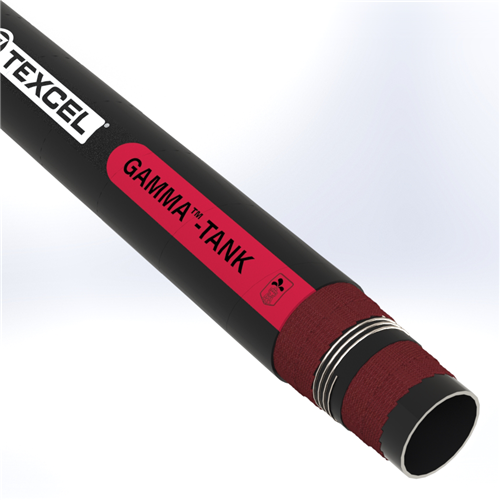

GTA15S1-1.0 by Texcel | GAMMA™-TANK Series | Tank Truck Hose | 1" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

GTA15S1-1.0 by Texcel | GAMMA™-TANK Series | Tank Truck Hose | 1" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

$6.30 - $525.00
$6.30
$5.60
$5.60 - $466.67
$5.60

Texcel
TANK Series | Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GTA15S1-1.0-100P Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-TANK Series
Hose Color(s): Black
Internal Diameter: 1in
Outer Diameter: 1.45in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: The industry standard for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Tube: Black, Nitrile, 55% aromatics (ORS), Minimum oil swell and low ECI value
Cover: Black, Neoprene (smooth) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-TANK - TANK TRUCK HOSE 150 PSI W.P.
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GTA15S1-1.0 1" 1-29/64" 150 psi 29 3" 0.43 lbs
GTA15S1-1.25 1-1/4" 1-43/64" 150 psi 29 4" 0.70 lbs
GTA15S1-1.5 1-1/2" 1-59/64" 150 psi 29 6" 0.84 lbs
GTA15S1-2.0 2" 2-29/64" 150 psi 29 8" 1.10 lbs
GTA15S1-2.5 2-1/2" 2-61/64" 150 psi 29 10" 1.48 lbs
GTA15S1-3.0 3" 3-32/64" 150 psi 29 13" 1.79 lbs
GTA15S1-4.0 3" 4-36/64" 150 psi 29 19" 2.64 lbs
