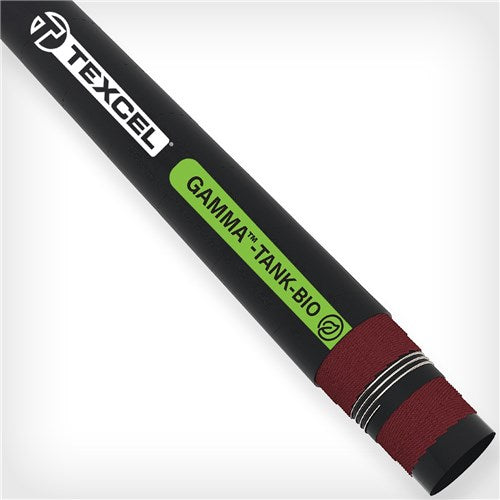

GTA15S1-BIO-1.0 by Texcel | GAMMA™-TANK-BIO Series | Biofuel Tank Truck Hose | 1" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

GTA15S1-BIO-1.0 by Texcel | GAMMA™-TANK-BIO Series | Biofuel Tank Truck Hose | 1" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

$8.75 - $729.00
$8.75
$7.78
$7.78 - $648.00
$7.78

GAMMA™ by Texcel
TANK-BIO Series | Biofuel Tank Truck Hose

Package Quantity: 100 Units

Specifications for Variant SKU: GTA15S1-BIO-1.0-100 Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-TANK-BIO Series
Hose Color(s): Black
Internal Diameter: 1in
Texcel GAMMA™-TANK-BIO | Biofuel Suction & Discharge Hose
Suction and discharge hose for transport of biofuel, biodiesel blends, B-100, E-100, ethanol blends and fuel mixtures with aromatic content up to 60%. Used for tank trucks, storage tanks and loading stations.
  • Tube: Special NBR-based oil-resistant blend
  • Cover: Black NBR-based smooth oil, abrasion, and ozone-resistant compound
  • Reinforcement: High-tensile textile cord, dual helix, antistatic wire
  • Working Pressure: 150 psi (4:1 safety factor)
  • Temperature Range: -22°F to +185°F
  • Standard Lengths: 100'
I.D. Part Number O.D. Working Pressure (psi) Vacuum (in./Hg) Bend Radius (in.) Lbs./Ft.
1" GTA15S1-BIO-1.0 1-27/64" 150 29 4" 0.50
1-1/4" GTA15S1-BIO-1.25 1-47/64" 150 29 5" 0.67
1-1/2" GTA15S1-BIO-1.5 1-62/64" 150 29 6" 0.77
2" GTA15S1-BIO-2.0 2-33/64" 150 29 8" 1.10
2-1/2" GTA15S1-BIO-2.5 3-2/64" 150 29 10" 1.68
3" GTA15S1-BIO-3.0 3-35/64" 150 29 12" 2.10
4" GTA15S1-BIO-4.0 4-42/64" 150 29 16" 3.10
