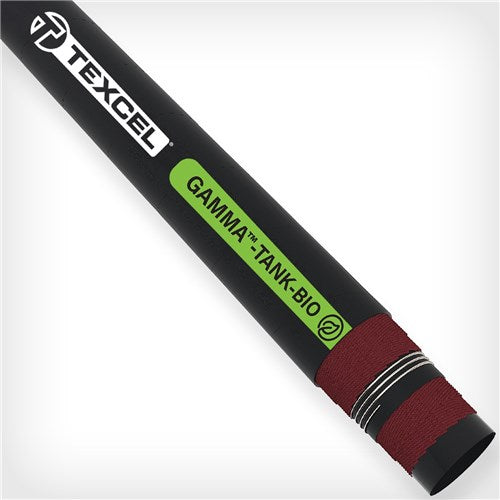

GTA15S1-BIO-2.0-100 by Texcel | GAMMA™-TANK-BIO Series | Biofuel Tank Truck Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

$20.68 - $1,722.87

$20.68

$14.77

$14.77 - $1,230.62

$14.77

GAMMA™ by Texcel
TANK-BIO Series | Biofuel Tank Truck Hose

Quantity

Specifications for Variant SKU: GTA15S1-BIO-2.0-100 Texcel \| 100 \|
Brand:	GAMMA™
Series:	GAMMA™-TANK-BIO Series
Hose Color(s):	Black
Internal Diameter:	2in

Texcel GAMMA™-TANK-BIO \| Biofuel Suction & Discharge Hose
Suction and discharge hose for transport of biofuel, biodiesel blends, B-100, E-100, ethanol blends and fuel mixtures with aromatic content up to 60%. Used for tank trucks, storage tanks and loading stations.
Tube: Special NBR-based oil-resistant blend Cover: Black NBR-based smooth oil, abrasion, and ozone-resistant compound Reinforcement: High-tensile textile cord, dual helix, antistatic wire Working Pressure: 150 psi (4:1 safety factor) Temperature Range: -22°F to +185°F Standard Lengths: 100'

I.D.	Part Number	O.D.	Working Pressure (psi)	Vacuum (in./Hg)	Bend Radius (in.)	Lbs./Ft.
1"	GTA15S1-BIO-1.0-100	1-27/64"	150	29	4"	0.50
1-1/4"	GTA15S1-BIO-1.25-100	1-47/64"	150	29	5"	0.67
1-1/2"	GTA15S1-BIO-1.5-100	1-62/64"	150	29	6"	0.77
2"	GTA15S1-BIO-2.0-100	2-33/64"	150	29	8"	1.10
2-1/2"	GTA15S1-BIO-2.5-100	3-2/64"	150	29	10"	1.68
3"	GTA15S1-BIO-3.0-100	3-35/64"	150	29	12"	2.10
4"	GTA15S1-BIO-4.0-100	4-42/64"	150	29	16"	3.10

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
