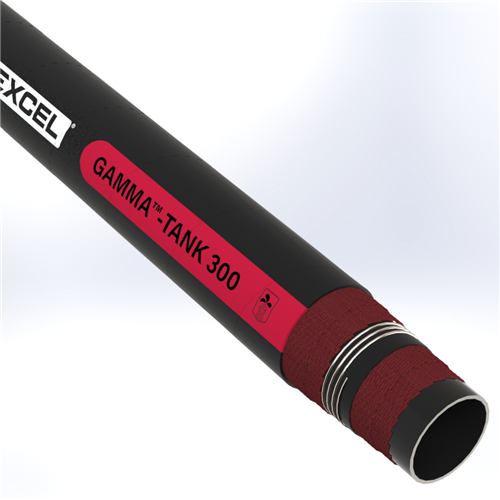

GTA30S1-4.0 by Texcel | GAMMA™-TANK 300 Series | Heavy-Duty Tank Truck Hose | 4" Hose ID | 300 PSI | 29 in/Hg Vacuum Rated | Black

GTA30S1-4.0 by Texcel | GAMMA™-TANK 300 Series | Heavy-Duty Tank Truck Hose | 4" Hose ID | 300 PSI | 29 in/Hg Vacuum Rated | Black

$37.82 - $6,303.00
$37.82
$33.62
$33.62 - $5,602.67
$33.62

GAMMA™ by Texcel
TANK 300 Series | 300psi Heavy-Duty Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GTA30S1-4.0-100N Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-TANK 300 Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.70in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: Designed for offshore drilling and other demanding applications where a high working pressure is needed and longer lengths with fewer connections are desired. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Black, Neoprene (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-TANK 300 - HEAVY-DUTY TANK TRUCK HOSE 300 PSI W.P.
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GTA30S1-1.5 1-1/2" 1-61/64" 300 psi 29 5" 0.85 lbs
GTA30S1-2.0 2" 2-31/64" 300 psi 29 7.5" 1.16 lbs
GTA30S1-2.5 2-1/2" 3" 300 psi 29 12" 1.56 lbs
GTA30S1-3.0 3" 3-38/64" 300 psi 29 16" 2.26 lbs
GTA30S1-4.0 4" 4-45/64" 300 psi 29 20" 3.32 lbs
