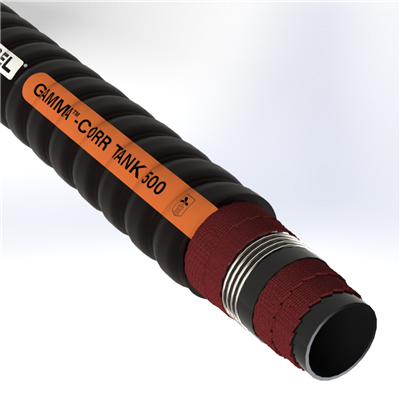

GTA50C1-2.0 by Texcel | GAMMA™-FLEX TANK 500 Series | Heavy-Duty Corrugated Tank Truck Hose | 2" Hose ID | 500 PSI | 29 in/Hg Vacuum Rated | Black

GTA50C1-2.0 by Texcel | GAMMA™-FLEX TANK 500 Series | Heavy-Duty Corrugated Tank Truck Hose | 2" Hose ID | 500 PSI | 29 in/Hg Vacuum Rated | Black

$29.59 - $4,932.00
$29.59
$26.30
$26.30 - $4,384.00
$26.30

GAMMA™ by Texcel
FLEX TANK 500 Series | 500psi Heavy-Duty Corrugated Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GTA50C1-2.0-200N Texcel | 200 |
Brand: GAMMA™
Series: GAMMA™-FLEX TANK 500 Series
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.78in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: Heavy-duty and high pressure tank truck hose for the most demanding applications. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Black, Neoprene (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-CORR TANK 500 - HEAVY DUTY TANK TRUCK HOSE 500 PSI W.P
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GTA50C1-2.0 2" 2-50/64" 500 psi 29 6" 1.73 lbs
GTA50C1-3.0 3" 3-59/64" 500 psi 29 9" 2.77 lbs
GTA50C1-4.0 4" 5-2/64" 500 psi 29 13" 4.36 lbs
