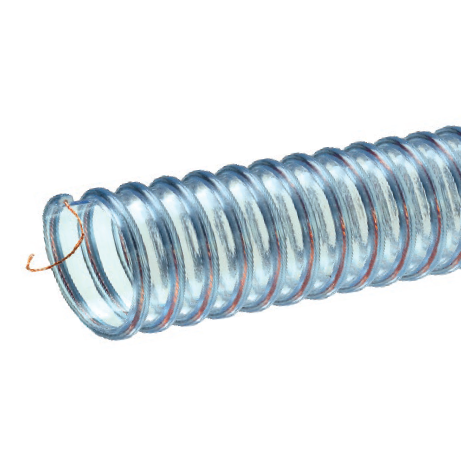

GTFE150X100 Kuriyama Tigerflex GTFE Series Food Grade PVC Ducting/Material Handling Hose with Grounding Wire - 1-1/2" - 100ft

GTFE150X100 Tigerflex by Kuriyama | GTFE Series | Food Grade Ducting/Material Handling Hose with Grounding Wire | 1-1/2" ID | PVC | 100ft Length

Save $153.36

$536.76

$536.76 - $536.76

$536.76

$383.40

$383.40 - $383.40

$383.40

Kuriyama Tigerflex GTFE™ Series Food Grade PVC Ducting/Material Handling Hose with Grounding Wire

Package Quantity: 100 FT

Specifications for Variant SKU: GTFE150X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	GTFE Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	1.50in
Outer Diameter:	1.82in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Ducting, ventilation and fume removal, Food grade blower and ducting systems, Material handling - light duty, Pharmaceutical product transfer	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix and Grounding Wire	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Grounding Wire (GTFE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
GTFE150X100	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22in. Hg	14in. Hg	1"	100ft	0.23 lbs
GTFE200X100	2"	50.8mm	2.39"	60.8mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	2"	100ft	0.30 lbs
GTFE250X100	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in. Hg	10 in. Hg	2"	100ft	0.39 lbs
GTFE300X50	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3"	50ft	0.50 lbs
GTFE300X100	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	3"	100ft	0.50 lbs
GTFE400X100	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	100ft	0.77 lbs
GTFE400X50	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	50ft	0.77 lbs
GTFE600X50	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6"	50ft	1.08 lbs
GTFE800X50	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in. Hg	3 in. Hg	8"	50ft	1.74 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
