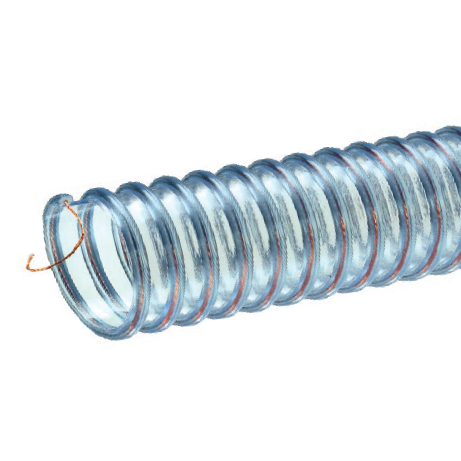

GTFE400X100 Kuriyama Tigerflex GTFE Series Food Grade PVC Ducting/Material Handling Hose with Grounding Wire - 4" - 100ft

GTFE400X100 Tigerflex by Kuriyama | GTFE Series | Food Grade Ducting/Material Handling Hose with Grounding Wire | 4" ID | PVC | 100ft Length

Save $752.00 Save $752.00
$1,880.00
$1,880.00 - $1,880.00
$1,880.00
$1,128.00
$1,128.00 - $1,128.00
$1,128.00

Kuriyama Tigerflex GTFE™ Series Food Grade PVC Ducting/Material Handling Hose with Grounding Wire


Package Quantity: 100 FT

Specifications for Variant SKU: GTFE400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: GTFE Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.50in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Ducting, ventilation and fume removal, Food grade blower and ducting systems, Material handling - light duty, Pharmaceutical product transfer SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix and Grounding Wire Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Grounding Wire (GTFE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
GTFE150X100 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22in. Hg 14in. Hg 1" 100ft 0.23 lbs
GTFE200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 2" 100ft 0.30 lbs
GTFE250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in. Hg 10 in. Hg 2" 100ft 0.39 lbs
GTFE300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 50ft 0.50 lbs
GTFE300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 3" 100ft 0.50 lbs
GTFE400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 100ft 0.77 lbs
GTFE400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 50ft 0.77 lbs
GTFE600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 50ft 1.08 lbs
GTFE800X50 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 8" 50ft 1.74 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
