GW33-12x12 Couplamatic GW Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long drop - 3/4" Hose ID - 1-3/16x12 Thread

GW33-12x12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-3/16x12 Thread O-Ring Face Seal | ORF Female Swivel Long drop | 90° Elbow | Trivalent Zinc Plating

Save $3.30 Save $3.30
$29.69
$29.69 - $29.69
$29.69
$26.39
$26.39 - $26.39
$26.39

Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - 90° Female Swivel Long drop
Specifications for Variant SKU: GW33-12x12 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

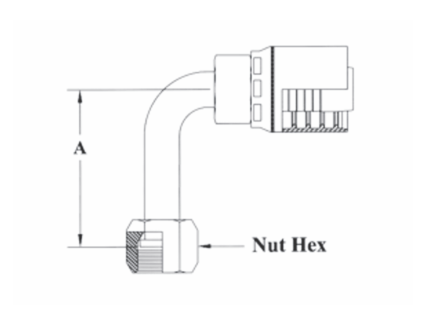

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW33-8x8 1/2" 1/2" 13/16x16 2.51" 15/16" 43008U-A68
GW33-8x10 1/2" 5/8" 1x14 2.76" 1-1/8" 43008U-A70
GW33-12x12 3/4" 3/4" 1-3/16x12 3.78" 1-3/8" 43012U-A72
GW33-16x16 1" 1" 1-7/16x12 4.50" 1-5/8" 43016U-A76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
