GW81-16x16 Couplamatic GW Series Coupling - Extra Heavy Duty Flange - 45° Bend - 1" Hose ID - 1" Flange Size (For use on Caterpillar® Equipment)

GW81-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Save $5.02 Save $5.02
$45.16
$45.16 - $45.16
$45.16
$40.14
$40.14 - $40.14
$40.14

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Flange - 45° Bend (For use on Caterpillar® Equipment)
Specifications for Variant SKU: GW81-16x16 Couplamatic
Series: GW Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Caterpillar Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

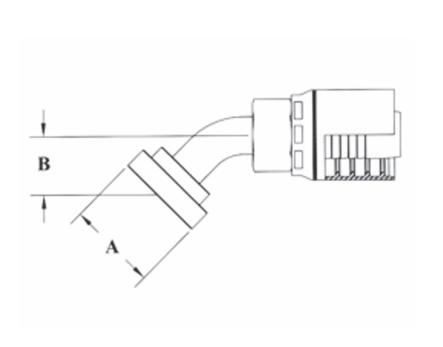

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches
GW81-12x12 3/4" 3/4" 1.62" 1.25"
GW81-16x16 1" 1" 1.88" 1.40"
GW81-20x20 1-1/4" 1-1/4" 2.12" 1.50
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
