GW82-12x12 Couplamatic GW Series Coupling - Extra Heavy Duty Flange - 90° Bend - 3/4" Hose ID - 3/4" Flange Size (For use on Caterpillar® Equipment)

GW82-12x12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 3/4" Extra Heavy Duty Flange Size | 90° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Save $3.84 Save $3.84
$34.59
$34.59 - $34.59
$34.59
$30.75
$30.75 - $30.75
$30.75

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Flange - 90° Bend (For use on Caterpillar® Equipment)
Specifications for Variant SKU: GW82-12x12 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Caterpillar Flange, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

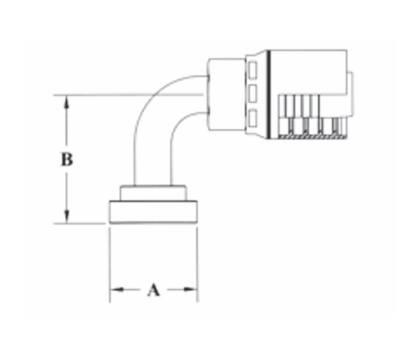

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches
GW82-12x12 3/4" 3/4" 1.62" 2.50"
GW82-16x16 1" 1" 1.88" 3.00"
GW82-20x20 1-1/4" 1-1/4" 2.12" 3.38"
