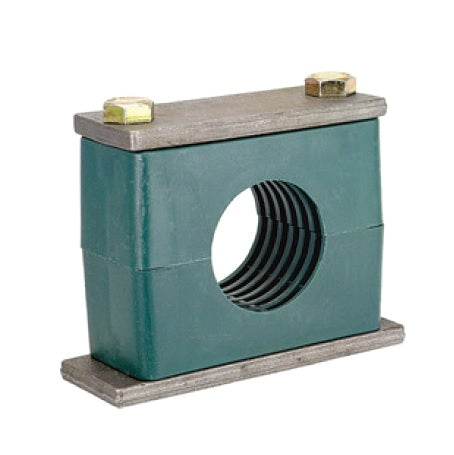

H3008S ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1/2" Tube | Polypropylene/Steel

H3008S by ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1/2" Tube | Polypropylene/Steel

Save $0.84 Save $0.84
$7.54
$7.54 - $7.54
$7.54
$6.70
$6.70 - $6.70
$6.70

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Weld Mount - Polypropylene (Green) Cushion
Specifications for Variant SKU: H3008S ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 0.5
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:
Assembly Includes:
Quantity Description
1 Each Weld Plate
1 Each Cover Plate
2 Each Hex Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H3007S 1/8" 3/8-16 x 1-3/4
H3004S H3009S 1/4" 3/8-16 x 1-3/4
H3006S H3011S 3/8" 3/8-16 x 1-3/4
H3008S H4014S 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010S - 5/8" 3/8-16 x 1-3/4
H4012S H4017S 3/4" 3/8-16 x 2-1/4
H4015S - 7/8" 3/8-16 x 2-1/4
H4016S H5021S 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020S H5027S 1-1/4" 3/8-16 x 2-3/4
H5024S H6030S 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028S - 1-3/4" 1/2-13 x 4
H6032S H6038S 2" 1/2-13 x 4
H6034S - 2-1/4" 1/2-13 x 4
H6040S H7046S 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044S - 2-3/4" 5/8-11 x 5-1/4
H7050S H7056S 3" 5/8-11 x 5-1/4
H7057S - 3-1/2" 5/8-11 x 5-1/4
- H8072S 4" M20 x 190mm
- H9089S 5" M24 x 220mm
- H9106S 6" M24 x 220mm
- H10137S 8" M30 x 300mm
- H11170S 10" M30 x 450mm
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
