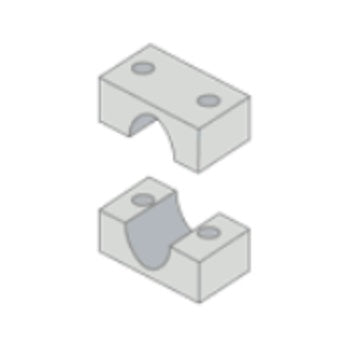

H5021C-AL ZSi-Foster | Beta Clamp | Heavy Series | 1" Pipe Cushion ONLY | Aluminum

H5021C-AL by ZSi-Foster | Beta Clamp | Heavy Series | 1" Pipe | Cushion ONLY | Aluminum

Save $1.98

$17.85

$17.85 - $17.85

$17.85

$15.87

$15.87 - $15.87

$15.87

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Aluminum Cushion ONLY

Recommended systems with greater than 1,500 psi (103 bar) operating pressure, operations with pressure surges, and applications with wide temperature fluctuations.

Aluminum cushions are used in higher heat applications up to 500°F (260°C).

Quantity

Specifications for Variant SKU: H5021C-AL ZSI-Foster
Series:	Heavy Series

Overview:
Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
Shock absorption, vibration dampening, and noise reducing properties. Securely and easily anchor clamps to machinery and steel work with weldable plates. Easily cleaned. Ribs in clamp bore absorb shock and vibration in direction of tube axis. Upper and lower clamp halves are identical.
Materials:
Cushion: Aluminum

Cushion for:
Tube Part Number	Pipe Part Number	Size	Hex Bolt
-	H3007C-AL	1/8"	3/8-16 x 1-3/4
H3004C-AL	H3009C-AL	1/4"	3/8-16 x 1-3/4
H3006C-AL	H3011C-AL	3/8"	3/8-16 x 1-3/4
H3008C-AL	H4014C-AL	1/2"	Tube: 3/8-16 x 1-3/4 Pipe: 3/8-16 x 2-1/4
H3010C-AL	-	5/8"	3/8-16 x 1-3/4
H4012C-AL	H4017C-AL	3/4"	3/8-16 x 2-1/4
H4015C-AL	-	7/8"	3/8-16 x 2-1/4
H4016C-AL	H5021C-AL	1"	Tube: 3/8-16 x 2-1/4 Pipe: 3/8-16 x 2-3/4
H7057C-AL	H5027C-AL	1-1/4"	3/8-16 x 2-3/4
H5024C-AL	H6030C-AL	1-1/2"	Tube: 3/8-16 x 2-3/4 Pipe: 1/2-13 x 4
H6028C-AL	-	1-3/4"	1/2-13 x 4
H6032C-AL	H6038C-AL	2"	1/2-13 x 4
H6034C-AL	-	2-1/4"	1/2-13 x 4
H6040C-AL	H7046C-AL	2-1/2"	Tube: 1/2-13 x 4 Pipe: 5/8-11 x 5-1/4
H7044C-AL	-	2-3/4"	5/8-11 x 5-1/4
H7050C-AL	H7056C-AL	3"	5/8-11 x 5-1/4
H7057C-AL	-	3-1/2"	5/8-11 x 5-1/4
H8072C-AL	-	4"	M20 x 190mm

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
