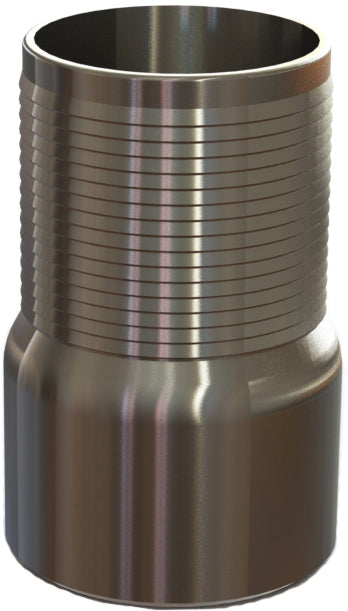

HAS-20 BV by Campbell Fittings | Beveled Combination Nipple | 5" Beveled End x 5" Hose Barb | Carbon Steel

HAS-20 BV by Campbell Fittings | Beveled Combination Nipple | 5" Beveled End x 5" Hose Barb | Carbon Steel

$65.30 - $65.30
$65.30
$73.65
$73.65 - $73.65
$73.65

by Campbell
Combination Nipples & Menders:HAS BV Beveled Combination Nipple
Specifications for Variant SKU: HAS-20 BV Campbell Fittings
Series: HAS BV Series
Shape (Orientation): Straight
Ends Configuration: 5in Female NPT, 5in Hose Barb
Material(s): Carbon Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HAS-3 BV 3/4"
HAS-4 BV 1"
HAS-5 BV 1-1/4"
HAS-6 BV 1-1/2"
HAS-8 BV 2"
HAS-10 BV 2-1/2"
HAS-12 BV 3"
HAS-16 BV 4"
HAS-20 BV 5"
HAS-24 BV 6"
HAS-32 BV 8"
HAS-40 BV 10"
HAS-48 BV 12"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
