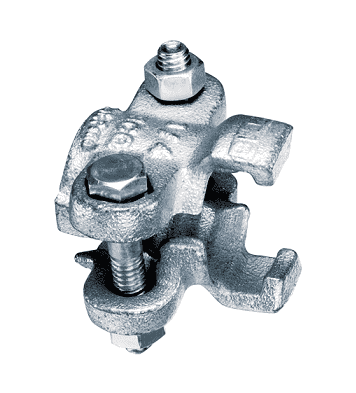

HC-75 by Kuriyama | Universal 2 Bolt Hose Clamp | Size Range: 1-1/8" - 1-5/16" | Torque: 12 ft. lbs. | Cast Steel

HC-75 by Kuriyama | Universal 2 Bolt Hose Clamp | Size Range: 1-1/8" - 1-5/16" | Torque: 12 ft. lbs. | Cast Steel

Save $0.58 Save $0.58
$3.90
$3.90 - $3.90
$3.90
$3.32
$3.32 - $3.32
$3.32

Kuriyama Couplings™ - Interlocking Bolt Clamps - 2 Bolt Hose Clamp - Cast Steel

Specifications for Variant SKU: HC-75 Kuriyama
Material(s): Steel
Minimum Clamp I.D.: 1.125
Maximum Clamp I.D.: 1.3125
Applications:
  • Recommended for use with Universal Couplings
  • Construction
  • For use with Kuriyama Hoses
Features:
  • All Universal Air Hose Couplings are investment cast steel for better dimensional precision, with machined threads and recessed gasket seat area
  • Note: For safety purposes, use of lanyard and safety clip (supplied with hose ends) is recommended with all Universal Air Hose Couplings.
  • WARNING: Not to be used for steam service
Materials:
  • N/A
Part Number Size Range (in.) Torque (ft. lbs.) Weight (Lbs.)
HC-50 1" - 1-1/8" 6 ft. Lbs. 0.32 lbs
HC-75 1-1/8" - 1-5/16" 12 ft. Lbs. 0.56 lbs
HC-100 1-17/32" - 1-21/32" 21 ft. Lbs. 0.72 lbs
