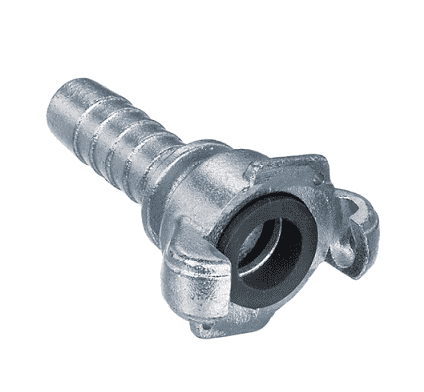

HE-100 by Kuriyama | 2 Lug Universal Air Hose Coupling | 1" | 150 PSI | Zinc Plated Steel

HE-100 by Kuriyama | 2 Lug Universal Air Hose Coupling | 1" | 150 PSI | Zinc Plated Steel

$4.74 - $4.74
$4.74
$5.17
$5.17 - $5.17
$5.17

Kuriyama Couplings™ - Universal Air Hose Couplings - Two Lug Hose Coupling - Zinc Plated Steel

Specifications for Variant SKU: HE-100 Kuriyama
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 2-Lug Chicago
Material(s): Zink-Plated Steel
Applications:
Features:
  • Note: For safety purposes, use of lanyard and safety clip (supplied with hose ends) is recommended with all Universal Air Hose Couplings.
  • All Universal Air Hose Couplings are investment cast steel for better dimensional precision, with machined threads and recessed gasket seat area.
  • WARNING: Not to be used for steam service
  • PSI Rating @ 70 deg. F (+21 deg. C) for 1/4" - 2": 150 PSI
Materials:
  • Zinc Plated Steel
Part Number Hose Size (in.) Weight (Lbs.)
HE-38 3/8" 0.44 lbs
HE-50 1/2" 0.48 lbs
HE-75 3/4" 0.56 lbs
HE-100 1" 0.64 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
