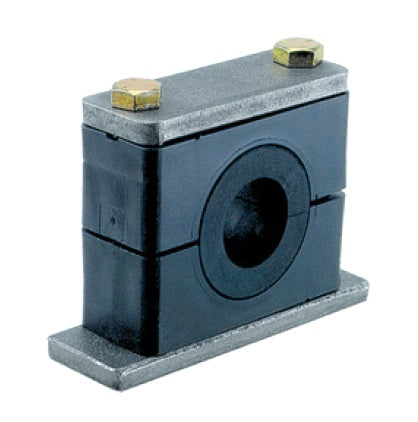

HM4006RIS ZSi-Foster | Weld Mount Beta Clamp (Metric) | Heavy Series with Rubber Insert | For 6mm Assembly | Polypropylene/Steel

HM4006RIS by ZSi-Foster | Weld Mount Beta Clamp (Metric) | Heavy Series with Rubber Insert | For 6mm Assembly | Polypropylene/Steel

Save $1.17 Save $1.17
$11.69
$11.69 - $11.69
$11.69
$10.52
$10.52 - $10.52
$10.52

ZSI-Foster
Beta Hydraulic Clamps (Metric) - Heavy Series with Rubber Insert - Weld Mount - Polypropylene/Steel

Used for high pressure hydraulics and heavy duty operations, as well as intermittent load and high oil speeds.
Specifications for Variant SKU: HM4006RIS ZSI-Foster
Series: Heavy Series with Rubber Insert
Maximum Clamp I.D.: 6mm
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Increase size range over standard series
Materials:
  • Steel
Installation:
Assembly Includes:
Quantity Description
1 Each Weld Plate
1 Each Cover Plate
2 Each Hex Bolts
1 Set Cushions
1 Each Rubber Insert
Part Number Description Bolt Length
HM4006RIS Heavy Rubber Insert 6mm Assembly 3/8-16 x 2-1/4
HM4008RIS Heavy Rubber Insert 8mm Assembly 3/8-16 x 2-1/4
H4007RIS Heavy Rubber Insert 10mm Assembly 3/8-16 x 2-1/4
HM4012RIS Heavy Rubber Insert 12mm Assembly 3/8-16 x 2-1/4
HM4014RIS Heavy Rubber Insert 14mm Assembly 3/8-16 x 2-1/4
HM4015RIS Heavy Rubber Insert 15mm Assembly 3/8-16 x 2-1/4
HM5028RIS Heavy Rubber Insert 28mm Assembly 3/8-16 x 2-3/4
HM5030RIS Heavy Rubber Insert 30mm Assembly 3/8-16 x 2-3/4
HM6035RIS Heavy Rubber Insert 35mm Assembly 1/2-13 x 4
HM6040RIS Heavy Rubber Insert 40mm Assembly 1/2-13 x 4
HM6045RIS Heavy Rubber Insert 45.5mm Assembly 1/2-13 x 4
HM6056RIS Heavy Rubber Insert 56.4mm Assembly 1/2-13 x 4
HM7065RIS Heavy Rubber Insert 65mm Assembly 5/8-11 x 5-1/2
HM7070RIS Heavy Rubber Insert 70mm Assembly 5/8-11 x 5-1/2
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
