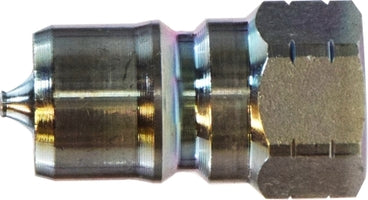

HNV14M (HNV-14-M) Midland Hydraulic Quick Disconnect - ISO-B Female Pipe Plug - 1/4" Body Size - 1/4" Female NPT - Steel

HNV14M by Midland | Hydraulic Quick Disconnect | ISO-B Female Pipe Plug | 1/4" Body Size | 1/4" Female NPT | Steel

Save $0.80

$5.09

$5.09 - $5.09

$5.09

$4.29

$4.29 - $4.29

$4.29

Midland Industries
Hydraulic Quick Disconnects: ISO-B Interchange

Inventory @ Manufacturers Warehouse: 1315 Units

Quantity

Specifications for Variant SKU: HNV14M Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male ISO-B QD Interchange, 1/4in Female NPT
Material(s):	Steel

Features:
Poppet valves to prevent uncoupled leakage. Critical parts are induction hardened for durability. Dependable ball-locking mechanism holds the maling halves together. Socket and plug are precision machined from solid barstock. Standard nitrile seals temp range -40°F to +250°F.

Interchanges:
Parker 60 Series	Snap-tite 72 Series	Dixon 'H' Series	Hansen HK Series	Aeroquip / Eaton FDH5

ISO-A Female Pipe Coupler (Steel)					ISO-A Female Pipe Plug (Steel)

Part Number	Body Size	Female NPT	Max PSI	Burst Pressure	Part Number	Body Size	Female NPT	Max PSI	Burst Pressure
HNV14F (HNV-14-F)	1/4"	1/4"	5,000 PSI	22,500 PSI	HNV14M (HNV-14-M)	1/4"	1/4"	5,000 PSI	22,500 PSI
HNV38F (HNV-38-F)	3/8"	3/8"	4,000 PSI	16,500 PSI	HNV38M (HNV-38-M)	3/8"	3/8"	4,000 PSI	16,500 PSI
HNV12F (HNV-12-F)	1/2"	1/2"	4,000 PSI	16,000 PSI	HNV12M (HNV-12-M)	1/2"	1/2"	4,000 PSI	16,000 PSI
HNV34F (HNV-34-F)	3/4"	3/4"	4,000 PSI	16,500 PSI	HNV34M (HNV-34-M)	3/4"	3/4"	4,000 PSI	16,500 PSI
HNV1F (HNV-1-F)	1"	1"	4,000 PSI	16,000 PSI	HNV1M (HNV-1-M)	1"	1"	4,000 PSI	16,000 PSI

ISO-B Female Pipe Coupler (Brass)					ISO-B Female Pipe Plug (Brass)

Part Number	Body Size	Female NPT	Max PSI	Burst Pressure	Part Number	Body Size	Female NPT	Max PSI	Burst Pressure
HNV14FB (HNV-14-F-B)	1/4"	1/4"	3,000 PSI	15,000 PSI	HNV14MB (HNV-14-M-B)	1/4"	1/4"	3,000 PSI	15,000 PSI
HNV38FB (HNV-38-F-B)	3/8"	3/8"	2,500 PSI	12,000 PSI	HNV38MB (HNV-38-M-B)	3/8"	3/8"	2,500 PSI	12,000 PSI
HNV12FB (HNV-12-F-B)	1/2"	1/2"	2,500 PSI	11,500 PSI	HNV12MB (HNV-12-M-B)	1/2"	1/2"	2,500 PSI	11,500 PSI
HNV34FB (HNV-34-F-B)	3/4"	3/4"	2,000 PSI	12,000 PSI	HNV34MB (HNV-34-M-B)	3/4"	3/4"	2,000 PSI	12,000 PSI
HNV1FB (HNV-1-F-B)	1"	1"	1,500 PSI	8,500 PSI	HNV1MB (HNV-1-M-B)	1"	1"	1,500 PSI	8,500 PSI
