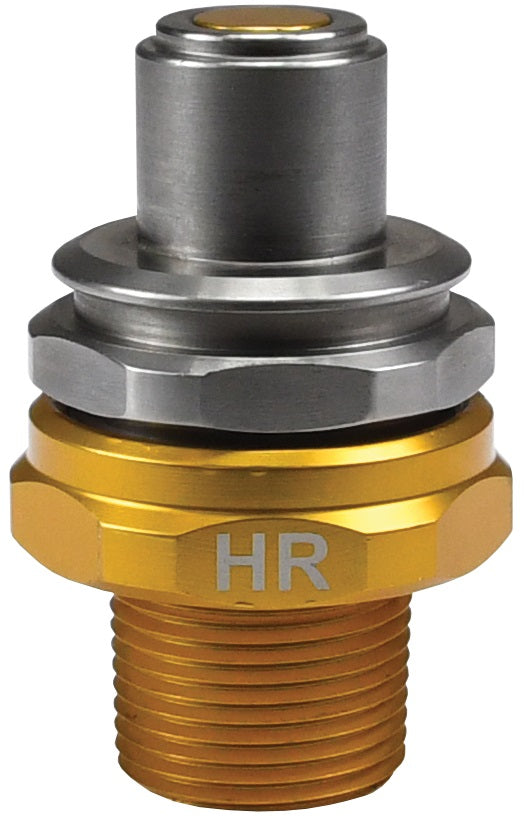

HR by Dixon Valve | FloMAX Standard-Series | Hydraulic Oil Receiver | 3/4" Male NPT | Gold | Anodized Aluminum

Save $39.56

$356.07

$356.07 - $356.07

$356.07

$316.51

$316.51 - $316.51

$316.51

Dixon Valve
FloMAX Standard-Series | Hydraulic Oil Receiver

Fully compatible and interchangeable with industry standards.

Quantity

Specifications for Variant SKU: HR Dixon
Brand:	FloMAX
Series:	HR Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT
Material(s):	Anodized Aluminum, Stainless Steel

Features:
Bright Gold. Easily recognizable labeling. Ergonomically engineered pullback and caps. 10 steel dog latching mechanism.
Construction:
All-metal construction. Stainless steel wear components. Anodized aircraft grade aluminum non-wear components. Clear anodized aircraft grade aluminum wear surfaces.

Hydraulic Oil Nozzles
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
HN	Hydraulic Oil Nozzle	3/4" Female NPT	108-5433	6000B12	N300
HN-P	Hydraulic Oil Nozzle with Cap	3/4" Female NPT	-	-	N300P
HN-PLUG	Hydraulic Oil Nozzle Plug	-	-	6009-12	P300

Hydraulic Oil Receivers
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
HR	Hydraulic Oil Receiver	3/4" Male NPT	108-5454	6005A12	R300
HR-C	Hydraulic Oil Receiver with Cap	3/4" Male NPT	-	-	R300C
HR-CAP	Hydraulic Oil Receiver Cap	-	IQ-5468	6008-12	C300
