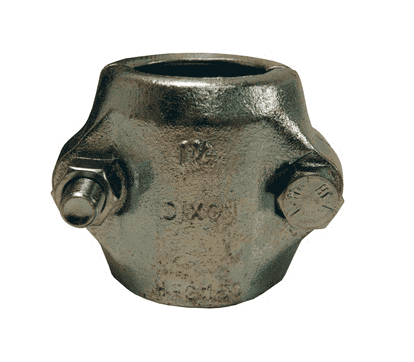

HRC-050 Dixon 1/2" Plated Iron Hydraulic Hose Coupling Clamp - Hose OD Range: 57/64" to 1"

HRC-050 Dixon Valve 1/2" Plated Iron Hydraulic Hose Coupling Clamp - Hose OD Range: 57/64" to 1"

Save $1.11 Save $1.11
$16.68
$16.68 - $16.68
$16.68
$15.57
$15.57 - $15.57
$15.57

Hydraulic Hose Couplings - Clamps for only 1 or 2 Wire Hydraulic Hoses - Plated Iron
Specifications for Variant SKU: HRC-050 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 0.890625
Maximum Clamp I.D.: 1
Features:
  • For use only on 1 or 2 wire hydraulic hoses.
  • This clamp should not be used on 4 or 6 wire hydraulic hose even when hose falls within recommended ranges.
Part Number Hose ID Hose OD Range Torque in ft. lbs. Weight (Lbs.)
From: To:
HRC-037 3/8" 50/64" 52/64" 18 0.3410
HRC-050 1/2" 57/64" 1" 18 0.4400
HRC-075 3/4" 1-16/64" 1-20/64" 36 0.8050
HRC-100 1" 1-37/64" 1-41/64" 64 1.0800
HRC-125 1-1/4" 1-54/64" 1-62/64" 90 2.5600
HRC-150 1-1/2" 2-10/64" 2-18/64" 90 2.2750
HRC-200 2" 2-43/64" 2-52/64" 90 3.1400
