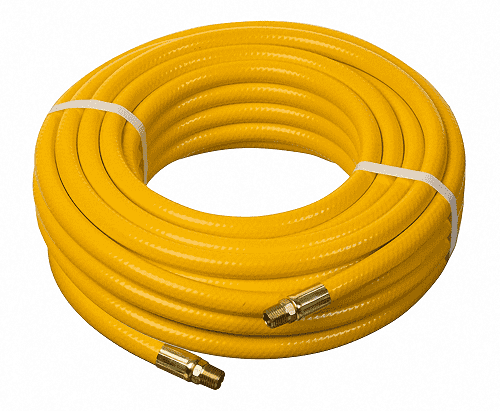

HS1181-04X100 Kuri-Tec by Kuriyama | HS1181 Series | Utility-Grade Air Tool Hose Assembly | Yellow | 1/4" ID | .475" OD | PVC | 100ft Length

Save $12.62

$44.18

$44.18 - $44.18

$44.18

$31.56

$31.56 - $31.56

$31.56

Kuriyama Kuri Tec® HS1181 Series Utility-Grade PVC Air Tool Hose Assemblies - Yellow

Specifications for Variant SKU: HS1181-04X100 Kuriyama
Brand:	Kuri Tec
Series:	HS1181 Series
Hose Color(s):	Yellow
Internal Diameter:	0.25in
Outer Diameter:	0.475in
Tubing Construction:	PVC
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Other Features:
Application:	Air Tools	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	+14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Note: Hose Assembly are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT 3/8" ID - 3/8" X 1/4"M NPT

Part Number	Nominal ID		Nominal OD		Working Pressure	Assembled Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)
HS1181-04X100	1/4"	6.5mm	.475"	12.1mm	300 PSI	100 ft.	7.4 lbs.
HS1181-04X25	1/4"	6.5mm	.475"	12.1mm	300 PSI	25 ft.	1.9 lbs.
HS1181-04X50	1/4"	6.5mm	.475"	12.1mm	300 PSI	50 ft.	3.7 lbs.
HS1181-06X100	3/8"	9.5mm	.600"	15.2mm	300 PSI	100 ft.	10.2 lbs.
HS1181-06X25	3/8"	9.5mm	.600"	15.2mm	300 PSI	25 ft.	2.6 lbs.
HS1181-06X50	3/8"	9.5mm	.600"	15.2mm	300 PSI	50 ft.	5.1 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
