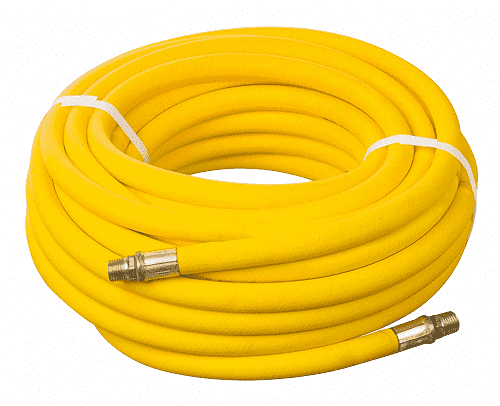

HS1231-08X25 Kuri-Tec by Kuriyama | TUNDRA-AIR HS1231 Series | High Grade Low Temperature Air Hose Assembly | Yellow | 1/2" ID | .781" OD | 25ft Length

HS1231-08X25 Kuri-Tec by Kuriyama | TUNDRA-AIR HS1231 Series | High Grade Low Temperature Air Hose Assembly | Yellow | 1/2" ID | .781" OD | 25ft Length

Save $13.67 Save $13.67
$47.85
$47.85 - $47.85
$47.85
$34.18
$34.18 - $34.18
$34.18

Kuriyama Kuri Tec® TUNDRA-AIR HS1231 Series High Grade Low Temperature Air Hose Assembly - Yellow

Specifications for Variant SKU: HS1231-08X25 Kuriyama
Brand: Kuri Tec, TUNDRA-AIR
Series: HS1231 Series
Hose Color(s): Yellow
Internal Diameter: 0.50in
Outer Diameter: 0.781in
Tubing Construction: Polyurethane
Ends Configuration: 1/2in Male NPT, 1/2in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Air Hose SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • 1/4" and 3/8" sizes (only) come with Rubber Bend Restrictors.
  • Hose assemblies are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT, 3/8" ID - 3/8" X 1/4"M NPT, 1/2" ID - 1/2" X 3/8"M NPT.
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
HS1231-04X100 1/4" 6.5mm .500" 12.7mm 300 PSI 160 PSI 100 ft. 7.8 lbs.
HS1231-04X25 1/4" 6.5mm .500" 12.7mm 300 PSI 160 PSI 25 ft. 2.0 lbs.
HS1231-04X50 1/4" 6.5mm .500" 12.7mm 300 PSI 160 PSI 50 ft. 4.0 lbs.
HS1231-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 160 PSI 100 ft. 10.7 lbs.
HS1231-06X25 3/8" 9.5mm .625" 15.9mm 300 PSI 160 PSI 25 ft. 2.8 lbs.
HS1231-06X50 3/8" 9.5mm .625" 15.9mm 300 PSI 160 PSI 50 ft. 5.5 lbs.
HS1231-08X100 1/2" 12.7mm .781" 19.8mm 300 PSI 160 PSI 100 ft. 16.0 lbs.
HS1231-08X25 1/2" 12.7mm .781" 19.8mm 300 PSI 160 PSI 25 ft. 4.1 lbs.
HS1231-08X50 1/2" 12.7mm .781" 19.8mm 300 PSI 160 PSI 50 ft. 8.1 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
