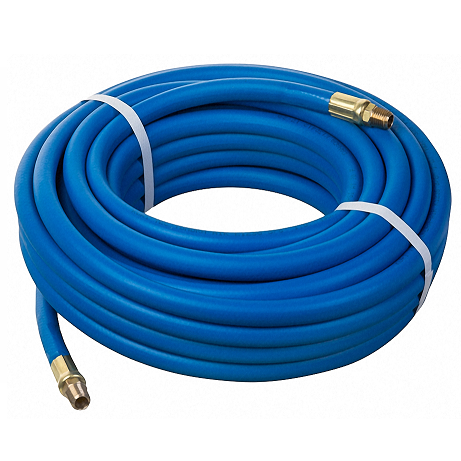

HS1236-08X100 Kuriyama Kuri Tec TUNDRA-AIR HS1236 Series High Grade Low Temperature Air Hose Assembly - Blue - 1/2" ID - .781" OD - 100ft

HS1236-08X100 Kuri-Tec by Kuriyama | TUNDRA-AIR HS1236 Series | High Grade Low Temperature Air Hose Assembly | Blue | 1/2" ID | .781" OD | 100ft Length

Save $12.02

$120.18

$120.18 - $120.18

$120.18

$108.16

$108.16 - $108.16

$108.16

Kuriyama Kuri Tec® TUNDRA-AIR HS1236 Series High Grade Low Temperature Air Hose Assembly - Blue

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HS1236-08X100 Kuriyama
Brand:	Kuri Tec, TUNDRA-AIR
Series:	HS1236 Series
Hose Color(s):	Blue
Internal Diameter:	0.50in
Outer Diameter:	0.781in
Tubing Construction:	Polyurethane
Ends Configuration:	1/2in Male NPT, 1/2in Male NPT, Some Ends Match

SPECIFICATIONS

Other Features:
Application:	Air Hose	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
1/4" and 3/8" sizes (only) come with Rubber Bend Restrictors. Hose assemblies are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT, 3/8" ID - 3/8" X 1/4"M NPT, 1/2" ID - 1/2" X 3/8"M NPT.

Part Number	Nominal ID		Nominal OD		Working Pressure		Assembled Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)
HS1236-04X100	1/4"	6.5mm	.500"	12.7mm	300 PSI	160 PSI	100 ft.	7.8 lbs.
HS1236-04X25	1/4"	6.5mm	.500"	12.7mm	300 PSI	160 PSI	25 ft.	2.0 lbs.
HS1236-04X50	1/4"	6.5mm	.500"	12.7mm	300 PSI	160 PSI	50 ft.	4.0 lbs.
HS1236-06X100	3/8"	9.5mm	.625"	15.9mm	300 PSI	160 PSI	100 ft.	10.7 lbs.
HS1236-06X25	3/8"	9.5mm	.625"	15.9mm	300 PSI	160 PSI	25 ft.	2.8 lbs.
HS1236-06X50	3/8"	9.5mm	.625"	15.9mm	300 PSI	160 PSI	50 ft.	5.5 lbs.
HS1236-08X100	1/2"	12.7mm	.781"	19.8mm	300 PSI	160 PSI	100 ft.	16.0 lbs.
HS1236-08X25	1/2"	12.7mm	.781"	19.8mm	300 PSI	160 PSI	25 ft.	4.1 lbs.
HS1236-08X50	1/2"	12.7mm	.781"	19.8mm	300 PSI	160 PSI	50 ft.	8.1 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
