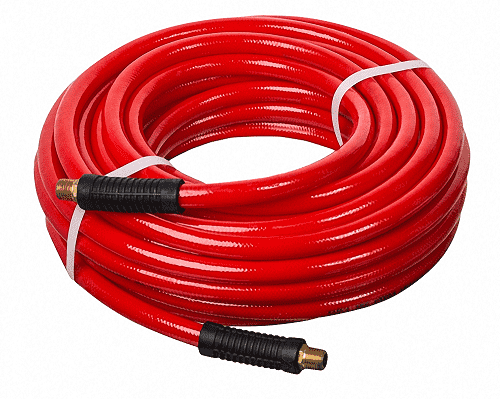

HS5094-04X100 Kuri-Tec by Kuriyama | PNEU-THANE HS5094 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | Red | 1/4" ID | .395" OD | 100ft Length

HS5094-04X100 Kuri-Tec by Kuriyama | PNEU-THANE HS5094 Series | Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly | Red | 1/4" ID | .395" OD | 100ft Length

Save $12.79 Save $12.79
$128.04
$128.04 - $128.04
$128.04
$115.25
$115.25 - $115.25
$115.25

Kuriyama Kuri Tec PNEU-THANE® PNEU-THANE HS5094 Series Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose Assembly - Red

Specifications for Variant SKU: HS5094-04X100 Kuriyama
Brand: Kuri Tec, PNEU-THANE
Series: HS5094 Series
Hose Color(s): Red
Internal Diameter: 0.25in
Outer Diameter: 0.395in
Tubing Construction: Polyurethane
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Pneumatic Air Tool SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • With Rubber Bend Restrictors
  • Hose assemblies are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT, 3/8" ID - 3/8" X 1/4"M NPT.
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
HS5094-04X100 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 100 ft. 4 lbs.
HS5094-04X25 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 25 ft. 1 lbs.
HS5094-04X50 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 50 ft. 2 lbs.
HS5094-06X100 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 100 ft. 6 lbs.
HS5094-06X25 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 25 ft. 1.5 lbs.
HS5094-06X50 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 50 ft. 3 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
