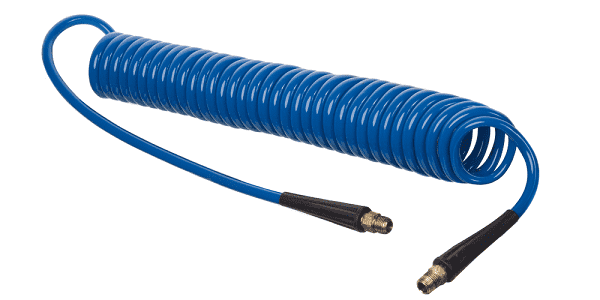

HSC2846-04X15 Kuri-Tec by Kuriyama | HSC2846 Series | Self-Store Coiled Tubing Assemblies for Air Tool Service | 1/4" ID | .375" OD | 1/4" x 1/4" Male NPT Fittings | Ether-Based Polyurethane | Blue | 15ft Length

Save $2.92

$29.23

$29.23 - $29.23

$29.23

$26.31

$26.31 - $26.31

$26.31

Kuriyama of America Inc.
Kuri Tec® Series HSC2840 Ether-Based Polyurethane Self-Store Coiled Tubing Assemblies for Air Tool Service - Blue

Quantity

Specifications for Variant SKU: HSC2846-04X15 Kuriyama
Brand:	Kuri Tec
Series:	HSC2846 Series
Hose Color(s):	Blue
Internal Diameter:	0.25in
Outer Diameter:	0.375in
Tubing Construction:	Polyurethane
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Other Features:
Application:	Self-Store Coiled Tubing Assemblies for Air Tool Service	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Ether-Based Polyurethane
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Standard assemblies have 4" pigtail and 20" whip end. Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance. Rubber bend restrictors over fittings prevents scratches and scuffs. Note: Not recommended for transfer of brake fluids. Hose assemblies are furnished with the following fittings: 1/4" ID Hoses: 1/4" x 1/4" Male NPT 3/8" ID Hoses: 3/8" x 1/4" Male NPT

Part Number	Nominal ID		Nominal OD		Working Pressure		Working Length	Coil OD	Standard Package	Approx Weight per Pkg
Part Number	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Working Length	Coil OD	Standard Package	Approx Weight per Pkg
HSC2846-04X10	1/4"	6.5mm	.375"	9.5mm	125 PSI	75 PSI	8 ft.	2 in.	10ft	5 lbs.
HSC2846-04X15	1/4"	6.5mm	.375"	9.5mm	125 PSI	75 PSI	12 ft.	2 in.	10ft	6.5 lbs.
HSC2846-04X20	1/4"	6.5mm	.375"	9.5mm	125 PSI	75 PSI	16 ft.	2 in.	10ft	8.5 lbs.
HSC2846-04X25	1/4"	6.5mm	.375"	9.5mm	125 PSI	75 PSI	20 ft.	2 in.	10ft	10 lbs.
HSC2846-04X30	1/4"	6.5mm	.375"	9.5mm	125 PSI	75 PSI	24 ft.	2 in.	10ft	12 lbs.
HSC2846-04X50	1/4"	6.5mm	.375"	9.5mm	125 PSI	75 PSI	40 ft.	2 in.	1ft	2 lbs.
HSC2846-06X10	3/8"	9.5mm	.570"	14.5mm	125 PSI	75 PSI	8 ft.	3 in.	5ft	5 lbs.
HSC2846-06X15	3/8"	9.5mm	.570"	14.5mm	125 PSI	75 PSI	12 ft.	3 in.	5ft	7 lbs.
HSC2846-06X20	3/8"	9.5mm	.570"	14.5mm	125 PSI	75 PSI	16 ft.	3 in.	5ft	9 lbs.
HSC2846-06X25	3/8"	9.5mm	.570"	14.5mm	125 PSI	75 PSI	20 ft.	3 in.	5ft	11 lbs.
HSC2846-06X30	3/8"	9.5mm	.570"	14.5mm	125 PSI	75 PSI	24 ft.	3 in.	5ft	12 lbs.
HSC2846-06X50	3/8"	9.5mm	.570"	14.5mm	125 PSI	75 PSI	40 ft.	3 in.	1ft	4 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
