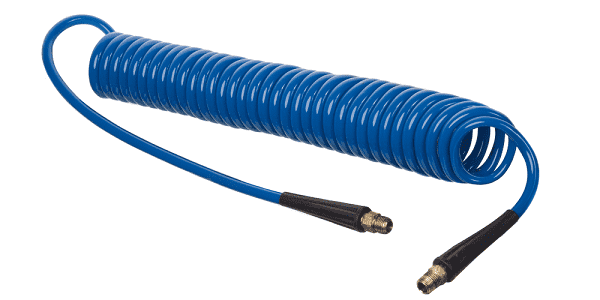

HSC2846-06X20 Kuri-Tec by Kuriyama | HSC2846 Series | Self-Store Coiled Tubing Assemblies for Air Tool Service | 3/8" ID | .570" OD | 3/8" x 1/4" Male NPT Fittings | Ether-Based Polyurethane | Blue | 20ft Length

HSC2846-06X20 Kuri-Tec by Kuriyama | HSC2846 Series | Self-Store Coiled Tubing Assemblies for Air Tool Service | 3/8" ID | .570" OD | 3/8" x 1/4" Male NPT Fittings | Ether-Based Polyurethane | Blue | 20ft Length

Save $6.35 Save $6.35
$63.54
$63.54 - $63.54
$63.54
$57.19
$57.19 - $57.19
$57.19

Kuriyama of America Inc.
Kuri Tec® Series HSC2840 Ether-Based Polyurethane Self-Store Coiled Tubing Assemblies for Air Tool Service - Blue
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HSC2846-06X20 Kuriyama
Brand: Kuri Tec
Series: HSC2846 Series
Hose Color(s): Blue
Internal Diameter: 0.375in
Outer Diameter: 0.57in
Tubing Construction: Polyurethane
Ends Configuration: 3/8in Male NPT, 3/8in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Self-Store Coiled Tubing Assemblies for Air Tool Service SAE Rating: N/A
Other Ratings: N/A Tube: Ether-Based Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Standard assemblies have 4" pigtail and 20" whip end.
  • Permanent crimped male swivel brass fittings provide greater strength and pull-out resistance.
  • Rubber bend restrictors over fittings prevents scratches and scuffs.
  • Note: Not recommended for transfer of brake fluids.
  • Hose assemblies are furnished with the following fittings:
    • 1/4" ID Hoses: 1/4" x 1/4" Male NPT
    • 3/8" ID Hoses: 3/8" x 1/4" Male NPT
Part Number Nominal ID Nominal OD Working
Pressure		 Working
Length		 Coil OD Standard
Package		 Approx Weight
per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F
(20 deg. C)
(PSI)		 @ 122 deg. F
(50 deg. C)
(PSI)
HSC2846-04X10 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 8 ft. 2 in. 10ft 5 lbs.
HSC2846-04X15 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 12 ft. 2 in. 10ft 6.5 lbs.
HSC2846-04X20 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 16 ft. 2 in. 10ft 8.5 lbs.
HSC2846-04X25 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 20 ft. 2 in. 10ft 10 lbs.
HSC2846-04X30 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 24 ft. 2 in. 10ft 12 lbs.
HSC2846-04X50 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 40 ft. 2 in. 1ft 2 lbs.
HSC2846-06X10 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 8 ft. 3 in. 5ft 5 lbs.
HSC2846-06X15 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 12 ft. 3 in. 5ft 7 lbs.
HSC2846-06X20 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 16 ft. 3 in. 5ft 9 lbs.
HSC2846-06X25 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 20 ft. 3 in. 5ft 11 lbs.
HSC2846-06X30 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 24 ft. 3 in. 5ft 12 lbs.
HSC2846-06X50 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 40 ft. 3 in. 1ft 4 lbs.
