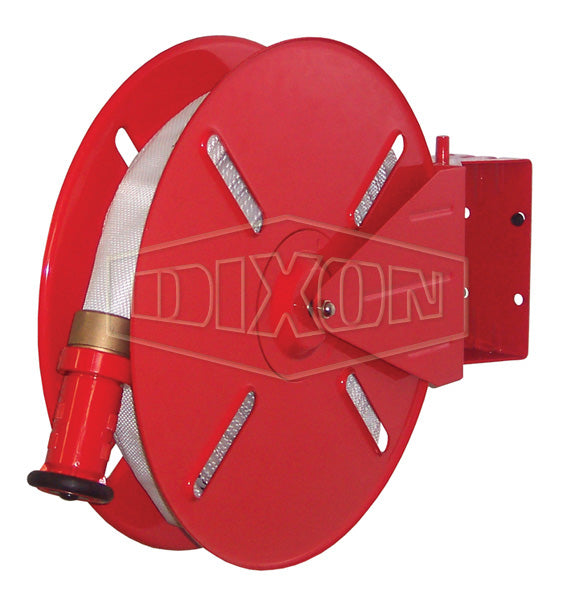

HSR25-24 Dixon Steel Swing Type Hose Storage Reel - 2-1/2" Hose Size - Holds 100ft of Lightweight Hose or Rubber Lined Hose

HSR25-24 Dixon Steel Swing Type Hose Storage Reel - 2-1/2" Hose Size - Holds 100ft of Lightweight Hose or Rubber Lined Hose

Save $248.29 Save $248.29
$620.73
$620.73 - $620.73
$620.73
$372.44
$372.44 - $372.44
$372.44

Dixon Fire Fittings
Fire Hose - Racks & Reels - Swing Type Hose Storage Reel

Hose Not Included
Specifications for Variant SKU: HSR25-24 Dixon
Features:
  • One piece wall bracket (14 gauge), for easier mounting.
  • 180° swing will also take pipe clamps to 3".
  • Compact size - smaller reel hub to allow more hose storage.
  • Baked red enamel finish.
  • 14 gauge steel support arms.
  • Welded construction - rim (18 gauge) hub cap, welded spokes form solid wheels, separated by a molded poly hub and bolted together to form a sturdy unit.
  • Hose is double rolled from the center of length coupled to valve and nozzle.
  • Hose is ready for action when completely removed and valve is open.
Dimensions
Reel A B C
HSR18 18" 23-1/2" 6-1/4"
HSR24 24" 29" 6-1/4"
HSR25-24 24" 29" 8-1/4"
Part Number Hose Size Hose Capacity Weight
(Lbs.)		 Cover
Lightweight Rubber Lined
HSR18 1-1/2" 150ft 50ft - 75ft 16.9600 HSRC18
HSR24 1-1/2" 250ft 100ft 25.5400 HSRC24
HSR25-24 2-1/2" 100ft 100ft 20.0000 HSRC25-24
