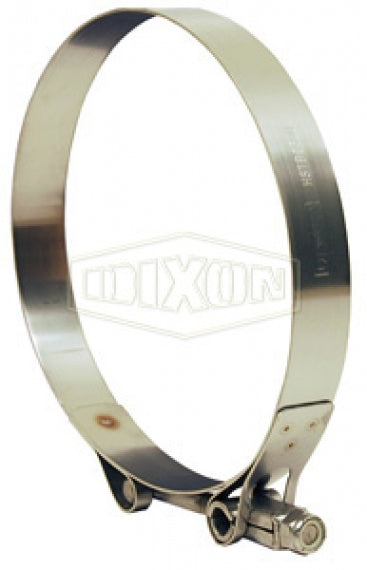

HSTBC300 by Dixon Valve | Style HSTBC | Heavy Duty T-Bolt Clamp | 7/8" Band Width | Hose OD Range: from 2.750" to 3.0625" | SAE 300 Stainless Steel Band & bolt

HSTBC300 by Dixon Valve | Style HSTBC | Heavy Duty T-Bolt Clamp | 7/8" Band Width | Hose OD Range: from 2.750" to 3.0625" | 300 Stainless Steel Band & Bolt

Save $1.67

$15.03

$15.03 - $15.03

$15.03

$13.36

$13.36 - $13.36

$13.36

Dixon Valve
Heavy Duty T-Bolt Clamps | Style HSTBC

Quantity

Specifications for Variant SKU: HSTBC300 Dixon
Series:	Style HSTBC
Material(s):	Stainless Steel, Stainless Steel
Clamp Thickness:	0.04
Clamp Width:	0.875
Minimum Clamp I.D.:	2.75
Maximum Clamp I.D.:	3.0625

Features:
Can be applied with a standard 1/2" socket wrench. Not for use with pneumatic tools.
Sizes:
7/8" wide, .040" thick
Materials:
Style HTBC 300-series stainless steel band. Carbon Steel Bolt, torque rating: 150 in/lbs. Style HSTBC 300-series stainless steel band. Stainless Steel Bolt, torque rating: 150 in. lbs.

Style HTBC Part Number	Style HSTBC Part Number	Band Width	Hose OD
Style HTBC Part Number	Style HSTBC Part Number	Band Width	From	To
HTBC238	HSTBC238	7/8"	2.125"	2.4375"
HTBC250	HSTBC250	7/8"	2.250"	2.5625"
HTBC300	HSTBC300	7/8"	2.750"	3.0625"
HTBC350	HSTBC350	7/8"	3.250"	3.5625"
HTBC400	HSTBC400	7/8"	3.750"	4.0625"
HTBC450	HSTBC450	7/8"	4.250"	4.5625"
HTBC500	HSTBC500	7/8"	4.750"	5.0625"
HTBC550	HSTBC550	7/8"	5.250"	5.5625"
HTBC600	HSTBC600	7/8"	5.750"	6.0625"
HTBC650	HSTBC650	7/8"	6.250"	6.5625"
HTBC700	HSTBC700	7/8"	6.750"	7.0625"
HTBC750	HSTBC750	7/8"	7.250"	7.5625"
HTBC800	HSTBC800	7/8"	7.750"	8.0625"
-	HSTBC850	7/8"	8.266"	8.562"
-	HSTBC888	7/8"	8.646"	8.942"
-	HSTBC900	7/8"	8.766"	9.062"
-	HSTBC950	7/8"	9.266"	9.562"
-	HSTBC1000	7/8"	9.766"	10.062"
-	HSTBC1088	7/8"	10.646"	10.942"
-	HSTBC1288	7/8"	12.646"	12.942"
