HTSS5150-400X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS. Liner | Light Weight | ID: 4" | 304 Stainless Steel | 25ft Length

Save $97.74

$980.74

$980.74 - $980.74

$980.74

$883.00

$883.00 - $883.00

$883.00

Kuriyama Hose Tec® HT5000 Series Smooth Bore(Lined) "Smooth Flow" Interlocked Metal Hose - Light Weight - Stainless Steel

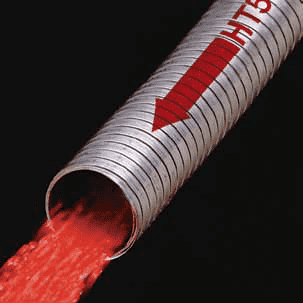

HT5000's Smooth Bore Interlocked Metal Hose combines the Hose Tec® single-strip interlocking armor construction with a second strip liner, providing a smooth interior flexible metal hose that resists material build-up; reduces internal abrasion and material degradation. Materials flow smoothly in one direction shown by arrows.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: HTSS5150-400X25 Kuriyama \| 25 \|
Brand:	Hose Tec
Series:	HTSS5150 Series
Hose Color(s):	Metallic
Internal Diameter:	4in
Tubing Construction:	304 Stainless Steel

SPECIFICATIONS

Other Features:
Application:	Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Stainless Steel
Reinforcement:	N/A	Cover:	Stainless Steel
Temperature Range:	Max. Service Temp: Up to 1500 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Construction: An armor strip is combined with a strip of liner material and formed to create a lined flexible interlocked metal hose that offers superior strength and abrasion-resistance for longer hose life. Directional flow arrows are provided on each length. Thickness: .015" Armor / .015" Liner. Galvanized or Stainless steel liner provides additional strength and greater resistance to abrasion; extends hose life. Smooth liner reduces material degradation and improves loading/unloading time. Provides maximum flow rates for pneumatic conveying applications. Flow indication arrows are provided on each length. Available in standard 25' lengths.

Part Number	Hose Size ID (in.)	Min Inside Bend Radius (in.)	Length (ft.)	Weight (per foot)
HTSS5150-150X25	1-1/2"	5.625"	25ft	1.10 lbs
HTSS5150-175X25	1-3/4"	6.50"	25ft	1.35lbs
HTSS5150-200X25	2"	7.50"	25ft	1.60 lbs
HTSS5150-225X25	2-1/4"	8.50"	25ft	1.90 lbs
HTSS5150-250X25	2-1/2"	9.50"	25ft	2.10 lbs
HTSS5150-275X25	2-3/4"	10.50"	25ft	2.30 lbs
HTSS5150-300X25	3"	11.50"	25ft	2.50lbs
HTSS5150-350X25	3-1/2"	13.50"	25ft	2.90lbs
HTSS5150-400X25	4"	15.00"	25ft	3.40lbs
HTSS5150-450X25	4-1/2"	17.00"	25ft	3.75lbs
HTSS5150-500X25	5"	18.50"	25ft	4.10lbs
HTSS5150-600X25	6"	22.00"	25ft	4.90lbs
HTSS5150-700X25	7"	26.50"	25ft	5.80lbs
HTSS5150-800X25	8"	30.50"	25ft	6.60lbs

Note: If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
