HTSS5250-600X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS Liner | Extra Heavy Weight | ID: 6" | 304 Stainless Steel | 25ft Length

Save $181.37

$1,813.70

$1,813.70 - $1,813.70

$1,813.70

$1,632.33

$1,632.33 - $1,632.33

$1,632.33

Kuriyama Hose Tec® HT5000 Series Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose - Extra Heavy Weight - 300 Stainless Steel

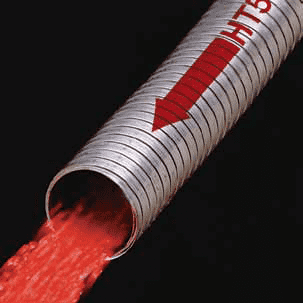

HT5000's Smooth Bore Interlocked Metal Hose combines the Hose Tec® single-strip interlocking armor construction with a second strip liner, providing a smooth interior flexible metal hose that resists material build-up; reduces internal abrasion and material degradation. Materials flow smoothly in one direction shown by arrows.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: HTSS5250-600X25 Kuriyama \| 25 \|
Brand:	Hose Tec
Series:	HTSS5250 Series
Hose Color(s):	Metallic
Internal Diameter:	6in
Tubing Construction:	304 Stainless Steel

SPECIFICATIONS

Other Features:
Application:	Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	300 Stainless Steel
Reinforcement:	N/A	Cover:	300 Stainless Steel
Temperature Range:	Max. Service Temp: Up to 1500 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Construction: An armor strip is combined with a strip of liner material and formed to create a lined flexible interlocked metal hose that offers superior strength and abrasion-resistance for longer hose life. Thickness .025" Armor / .018" Liner Directional flow arrows are provided on each length. Galvanized or Stainless steel liner provides additional strength and greater resistance to abrasion; extends hose life. Smooth liner reduces material degradation and improves loading/unloading time. Provides maximum flow rates for pneumatic conveying applications.

Part Number	Hose Size ID (in.)	Min Inside Bend Radius (in.)	Length (ft.)	Weight (per foot)
HTSS5250-300X25	3"	17.50"	25ft	3.75 lbs
HTSS5250-350X25	3-1/2"	18.50"	25ft	4.35lbs
HTSS5250-400X25	4"	19.50"	25ft	5.10lbs
HTSS5250-450X25	4-1/2"	22.00"	25ft	5.40lbs
HTSS5250-500X25	5"	24.00"	25ft	5.60lbs
HTSS5250-600X25	6"	30.00"	25ft	6.25lbs
HTSS5250-700X25	7"	34.00"	25ft	7.80lbs
HTSS5250-800X25	8"	37.00"	25ft	8.80lbs
HTSS5250-1000X25	10"	43.00"	25ft	11.00lbs
HTSS5250-1200X25	12"	52.00"	25ft	13.00lbs
HTSS5250-1400X25	14"	60.00"	25ft	15.50lbs
HTSS5250-1600X25	16"	69.00"	25ft	18.00lbs

Note: If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
