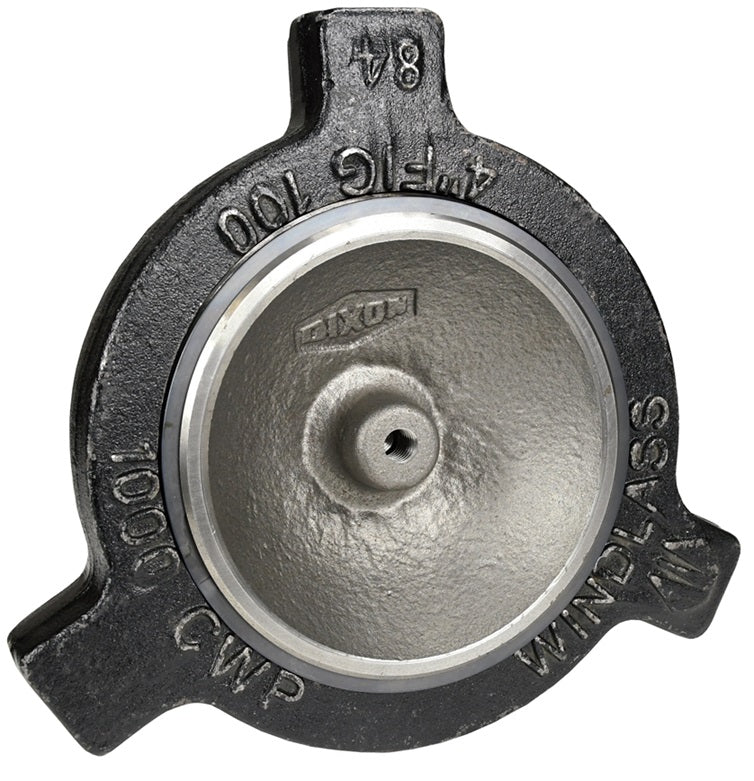

HUC100400 by Dixon Valve | Boss® LPS Hammer Union Blanking Cap | Figure 100 | 4" Size | Includes: Nut/Plug Body, O-Ring, and Retaining Ring | Forged Steel

Save $10.36

$211.80

$211.80 - $211.80

$211.80

$201.44

$201.44 - $201.44

$201.44

Dixon Valve
Boss® | LPS Hammer Union Blanking Cap

Prevents leakage of hydraulic fracturing fluids from hammer union connections used on manifolds and hose assemblies.

Hammer union caps and plugs can be used in pressurized service or as dust caps/plugs on site or when transferring equipment.

Quantity

Specifications for Variant SKU: HUC100400 Dixon
Brand:	Boss
Shape (Orientation):	No Orientation
Material(s):	Steel

Features:
Forged steel construction ensures longevity, reliability and performance. Low profile design for tight applications. Designed with reusable bull plug to rebuild cap. Caps are designed with larger lugs for easier installation and disassembling
Construction:
Forged steel nut. Iron bull plug to ASTM standards. O-ring is Nitrile Rubber.
Specification:
Forged steel meets AISI standards.

Part Number	Size	Figure	Includes
HUC206200	2"	206	Nut/Plug Body, O-Ring, and Retaining Ring
HUC100400	4"	100	Nut/Plug Body, O-Ring, and Retaining Ring
HUC206400	4"	206	Nut/Plug Body, O-Ring, and Retaining Ring
HUC206400BC	4"	206	Blue With Nut/Plug Body and Retaining Ring With Bolt and Chain
HUC207400	4"	207	Cap Only
HUC207400BC	4"	207	Blanking Cap With Bolt and Chain
HUC206600	6"	206	Nut/Plug Body, O-Ring, and Retaining Ring
HUC206800	8"	206	Nut/Plug Body, O-Ring, and Retaining Ring

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
