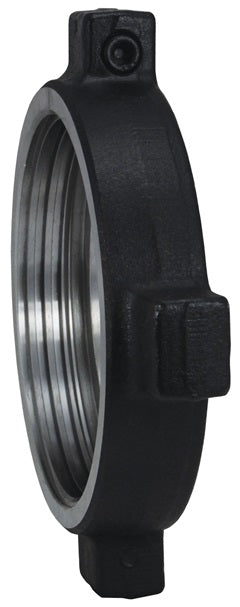

HUS500RN by Dixon Valve | Boss® Suction Service Fitting | Figure 50 | Hammer Union Split Nut, Black | 5" Size | Carbon Steel

$293.40 - $293.40

$293.40

$299.93

$299.93 - $299.93

$299.93

Dixon Valve
Boss® | Suction Service Hammer Union Fitting

Used in the transfer of dry cement, and in mud system suction lines.

Quantity

Specifications for Variant SKU: HUS500RN Dixon
Brand:	Boss
Shape (Orientation):	Straight
Material(s):	Carbon Steel

Features:

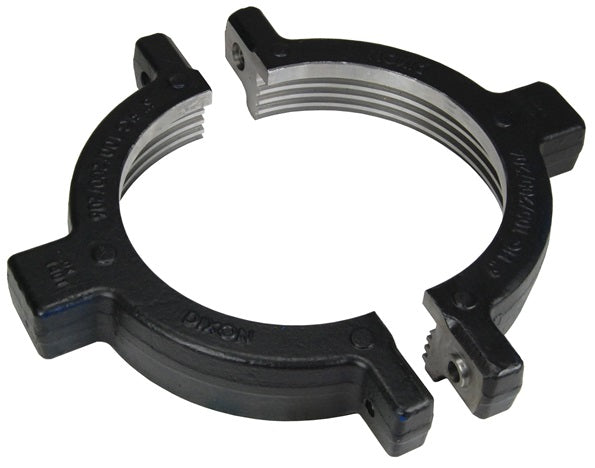

For attaching to hose fittings or pipe. Weld ready. Hammer Union Split Nut Features: Two-piece nut is pinned and bolted for easy service and repair. Includes bolts. Forged steel nuts meet AISI standards. Hammer union nut replacement.
Construction:
Material: Carbon Steel Seal on Female Fitting: Nitrile Rubber

Part Number	Size	Figure	Description	Working Pressure
HUSM500SW-1	5"	50	Socket Weld x Suction Male Hammer Union (Includes O-ring, No Nut)	-
HUSF500SW	5"	50	Socket Weld x Suction Female Hammer Union	-
HUS500RN	5"	50	Split Nut, Suction And Discharge, Black	500 PSI CWP

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
