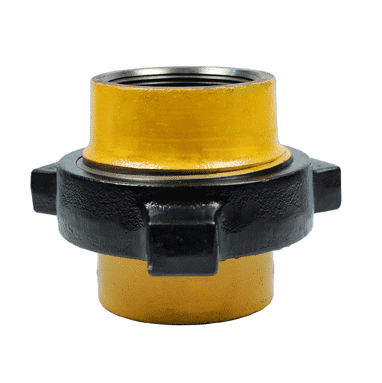

HUT100-2 by Kuriyama | Figure 100 | Threaded Hammer Union | 1000 PSI | CWP | 2" Female NPT x 2" Female NPT | Buna-N

$15.99 - $15.99

$15.99

$18.00

$18.00 - $18.00

$18.00

Kuriyama Couplings™ - Hammer Unions - Figure 100 - Threaded Female NPT x Female NPT - 1000 PSI CWP

Quantity

Specifications for Variant SKU: HUT100-2 Kuriyama
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile Rubber

Applications:
Applications include oil, gas, air, and water. For use with Kuriyama Hoses
Features:
Economical Low Pressure Union. Unions conform to NACE, ISO and DNV standards. Color coded for easy identification. CWP (Cold Working Pressure) is the maximum pressure at 70 deg. F (+21 deg. C). Unions are completely interchangeable with competitors of like products.
Materials:
ASTM Grade 65-45-12 ASTM A-105 ASTM A29 NPT threads conform to ASME B1.20.1 Elastomer seals are BUNA-N

Part Number	Size	Weight (Lbs.)
HUT100-2	2" x 2"	5.29 lbs
HUT100-3	3" x 3"	11.60 lbs
HUT100-4	4" x 4"	17.75 lbs
HUT100-6	6" x 6"	44.40 lbs
HUT100-8	8" x 8"	69.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
