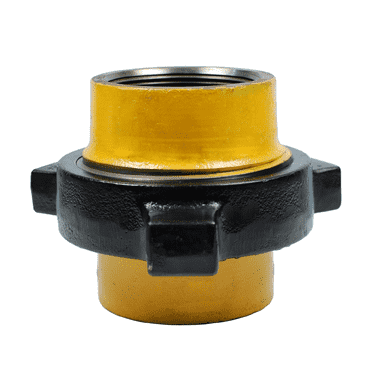

HUT100-3 by Kuriyama | Figure 100 | Threaded Hammer Union | 1000 PSI | CWP | 3" Female NPT x 3" Female NPT | Buna-N

HUT100-3 by Kuriyama | Figure 100 | Threaded Hammer Union | 1000 PSI | CWP | 3" Female NPT x 3" Female NPT | Buna-N

$41.96 - $41.96
$41.96
$45.32
$45.32 - $45.32
$45.32

Kuriyama Couplings™ - Hammer Unions - Figure 100 - Threaded Female NPT x Female NPT - 1000 PSI CWP

Specifications for Variant SKU: HUT100-3 Kuriyama
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Applications include oil, gas, air, and water.
  • For use with Kuriyama Hoses
Features:
  • Economical Low Pressure Union.
  • Unions conform to NACE, ISO and DNV standards.
  • Color coded for easy identification.
  • CWP (Cold Working Pressure) is the maximum pressure at 70 deg. F (+21 deg. C).
  • Unions are completely interchangeable with competitors of like products.
Materials:
  • ASTM Grade 65-45-12
  • ASTM A-105
  • ASTM A29
  • NPT threads conform to ASME B1.20.1
  • Elastomer seals are BUNA-N
Part Number Size Weight (Lbs.)
HUT100-2 2" x 2" 5.29 lbs
HUT100-3 3" x 3" 11.60 lbs
HUT100-4 4" x 4" 17.75 lbs
HUT100-6 6" x 6" 44.40 lbs
HUT100-8 8" x 8" 69.90 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
