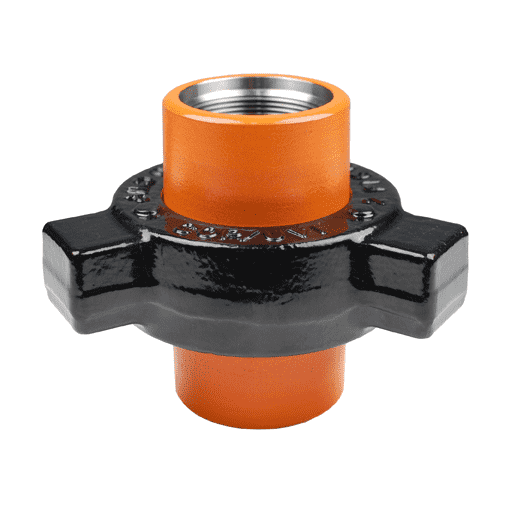

HUT400-2 by Kuriyama | Figure 400 | Threaded Hammer Union | 4000 PSI | CWP | 2" Female NPT x 2" Female NPT | Buna-N

$51.24 - $51.24

$51.24

$57.65

$57.65 - $57.65

$57.65

Kuriyama Couplings™ - Hammer Unions - Figure 400 - Threaded Female NPT x Female NPT - 4000 PSI CWP

Quantity

Specifications for Variant SKU: HUT400-2 Kuriyama
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile Rubber

Applications:
Applications include oil, gas, air, and water. For use with Kuriyama Hoses
Features:
Medium Pressure Union. Unions conform to NACE, ISO and DNV standards. Color coded for easy identification. CWP (Cold Working Pressure) is the maximum pressure at 70 deg. F (+21 deg. C). Unions are completely interchangeable with competitors of like products.
Materials:
ASTM Grade 65-45-12 ASTM A-105 ASTM A29 NPT threads conform to ASME B1.20.1 Elastomer seals are BUNA-N

Part Number	Size	Weight (Lbs.)
HUT400-2	2" x 2"	11.00 lbs
HUT400-3	3" x 3"	19.60 lbs
HUT400-4	4" x 4"	29.65 lbs
