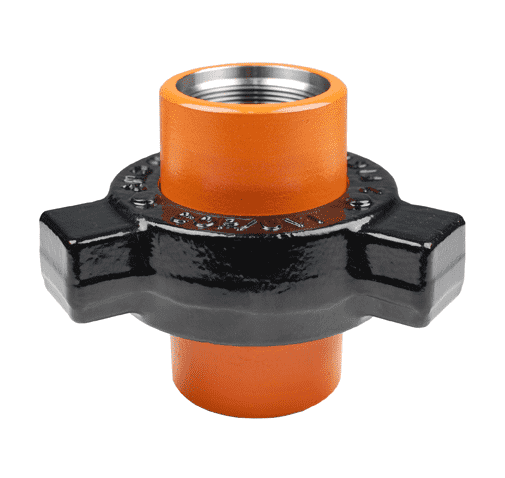

HUT602-3 by Kuriyama | Figure 602 | Threaded Hammer Union | 6000 PSI | CWP | 3" Female NPT x 3" Female NPT | Buna-N

Save $26.87

$141.43

$141.43 - $141.43

$141.43

$114.56

$114.56 - $114.56

$114.56

Kuriyama Couplings™ - Hammer Unions - Figure 602 - Threaded Female NPT x Female NPT - 6000 PSI CWP

Quantity

Specifications for Variant SKU: HUT602-3 Kuriyama
Shape (Orientation):	Straight
Ends Configuration:	3in Female NPT, 3in Female NPT
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile Rubber

Applications:
Applications include oil, gas, air, and water. For use with Kuriyama Hoses
Features:
Specially Designed Lip Type Elastomer Seal Protects Metal to Metal Sealing Surface and Reduces Line Flow Turbulence. Unions conform to NACE, ISO and DNV standards. Color coded for easy identification. CWP (Cold Working Pressure) is the maximum pressure at 70 deg. F (+21 deg. C). Unions are completely interchangeable with competitors of like products.
Materials:
ASTM Grade 65-45-12 ASTM A-105 ASTM A29 NPT threads conform to ASME B1.20.1 Elastomer seals are BUNA-N

Part Number	Size	Weight (Lbs.)
HUT602-1	1" x 1"	3.75 lbs
HUT602-2	2" x 2"	12.90 lbs
HUT602-3	3" x 3"	22.80 lbs
HUT602-4	4" x 4"	37.04 lbs
