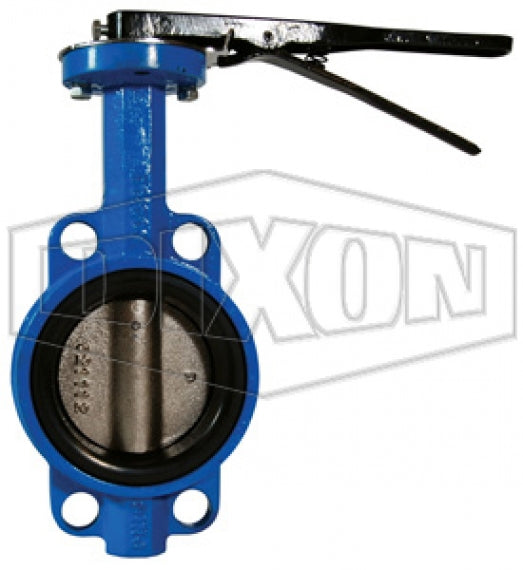

IBFVW400 by Dixon Valve | Butterfly Valve | Wafer Style | 4" 150# Flange | Nitrile Rubber Liner | Nickel Plated Iron Disc | Ductile Iron

IBFVW400 by Dixon Valve | Butterfly Valve | Wafer Style | 4" 150# Flange | Nitrile Rubber Liner | Nickel Plated Iron Disc | Ductile Iron

Save $59.88 Save $59.88
$184.60
$184.60 - $184.60
$184.60
$124.72
$124.72 - $124.72
$124.72

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Wafer Style

For use between two 150 lb. flanges.
Specifications for Variant SKU: IBFVW400 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in 150# Flange, 4in 150# Flange, Some Ends Match
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • 10 position trigger grip handle.
Materials:
  • Ductile iron body, ASTM A536.
  • Nickel plated ductile iron disc.
  • Nitrile rubber seal and stem seals.
  • PTFE bushing.
  • 416 stainless stem.
Specifications:
  • Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
  • Not Recommended For Steam Service.
Part Number
Valve with
Nitrile Rubber Liner		 Part Number
Valve with
EPDM Rubber Liner		 Size
IBFVW300 IBFVW300E 3"
IBFVW400 IBFVW400E 4"
IBFVW600 IBFVW600E 6"
IBFVW800 IBFVW800E 8"
