IBR0609 by Dixon Valve | Imported PVC Braided Tubing | 5/8" OD | 3/8" ID | 300ft Length

IBR0609 by Dixon Valve | Imported PVC Braided Tubing | 5/8" OD | 3/8" ID | 300ft Length

Save $20.30 Save $20.30
$182.73
$182.73 - $182.73
$182.73
$162.43
$162.43 - $162.43
$162.43

Dixon Valve

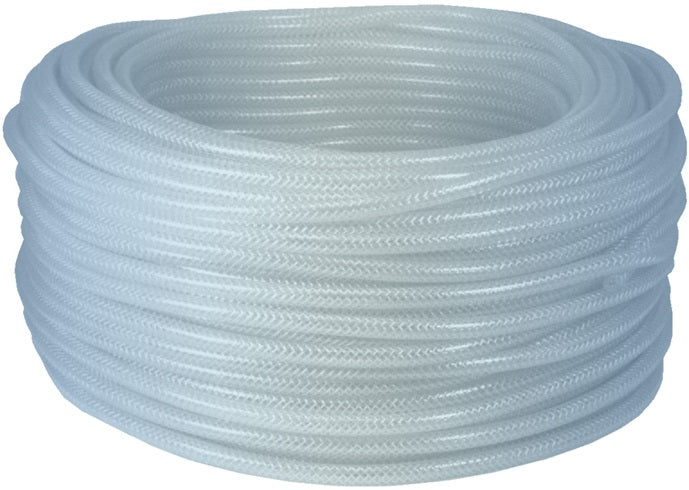

PVC Braided Tubing | Imported

For use with standard shank fittings in low-pressure liquid and pneumatic applications.

For various machine tools and transportation of chemicals.
Specifications for Variant SKU: IBR0609 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: PVC
Features:
  • Shipped in bundles wrapped with PVC film, sold only in lengths shown below.
Specifications:
  • Temperature range: 14°F to 149°F (-10°C to 65°C).
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
IBR0446 1/2" 1/4" 142 300ft
IBR0609 5/8" 3/8" 114 300ft
IBR0812 3/4" 1/2" 100 300ft
IBR1218 1-1/16" 3/4" 71 300ft
IBR1621 1-5/16" 1" 71 200ft
