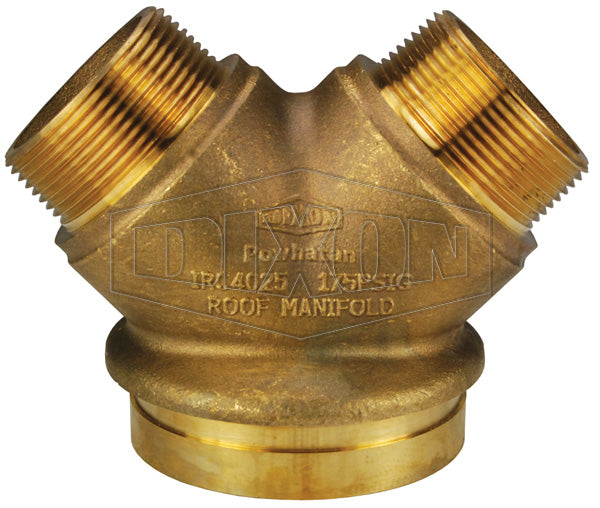

IRC4025 Dixon Cast Brass Straight Two Way Male Outlet - Roof Connection - Back Outlet - 4" Pipe Inlet x Two 2-1/2" NPT Male Outlets (Global)

IRC4025 Dixon Cast Brass Straight Two Way Male Outlet - Roof Connection - Back Outlet - 4" Pipe Inlet x Two 2-1/2" NPT Male Outlets (Global)

Save $135.81 Save $135.81
$339.53
$339.53 - $339.53
$339.53
$203.72
$203.72 - $203.72
$203.72

Dixon Fire Fittings
Roof Connections - Back Outlet - Cast Brass

Used to create roof connections, fire pump test connections, wall hydrants or sidewalk (free standing) hydrants.
Specifications for Variant SKU: IRC4025 Dixon
Shape (Orientation): Y
Ends Configuration: 4in Female NPT, 2-1/2in Male NPT, 2-1/2in Male NPT, Some Ends Match
Material(s): Brass
Features:
  • Provides 250 GPM minimum per outlet.
  • UL listed.
  • Maximum operating pressure: 175 PSI at 70°F (21°C).
Size A B C
4" x 2-1/2" x 2-1/2" 7-7/8" 5-3/16" 5-1/4"
6" x 2-1/2" x 2-1/2" 8-3/16" 6-3/8" 7-5/8"
Part Number Inlet (2) Outlets Weight
(Lbs.)
IRC4025* 4" Pipe 2-1/2" Male NPT 9.5000
FRC4025 4" Pipe 2-1/2" Male NPT 8.1000
IRC4025F* 4" Pipe 2-1/2" Male NST(NH) 9.5000
FRC4025F 4" Pipe 2-1/2" Male NST(NH) 8.1000
FRC6025 6" Pipe 2-1/2" Male NPT 16.4800
FRC6025F 6" Pipe 2-1/2" Male NST(NH) 14.1900
IRC4025GF* 4" Groove 2-1/2" Male NST(NH) 7.0500

* Parts are Imported, all others made in the USA
