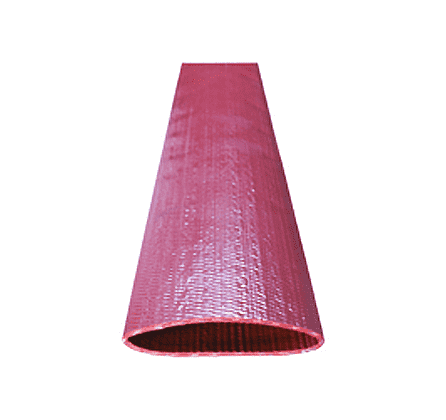

IS600X300 by Kuriyama | Layflat Ironsides Heavy Duty Water Discharge Hose | Brick Red | Size: 6" | 6.16" ID | 115 PSI | PVC | 300ft Length

IS600X300 by Kuriyama | Layflat Ironsides Heavy Duty Water Discharge Hose | Brick Red | Size: 6" | 6.16" ID | 115 PSI | PVC | 300ft Length

Save $1,018.80 Save $1,018.80
$3,565.80
$3,565.80 - $3,565.80
$3,565.80
$2,547.00
$2,547.00 - $2,547.00
$2,547.00

Kuriyama Layflat Hoses - Ironsides Hose - Brick Red

Heavy Duty PVC WaterDischarge Hose

Package Quantity: 300 FT

Specifications for Variant SKU: IS600X300 Kuriyama | 300 |
Brand: Ironsides
Series: IS Series
Hose Color(s): Red
Internal Diameter: 6.16in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable MSHA Standards

SPECIFICATIONS

Application: Agricultural, Quarry, Mining, Irrigation, Construction, Portable Hydrant, Relay Supply Line, Industrial SAE Rating: N/A
Other Ratings: N/A Tube: PVC Tube
Reinforcement: Two spiral plies and longitudinal synthetic cords Cover: PVC
Temperature Range: -5 deg. F (-20 deg. C) to 170 deg. F (+76 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications MSHA Accepted: MSHA IC-218/2
Other Features:
  • MSHA-accepted - Use as a water hose in underground mining applications
  • Premium quality tube and cover - Designed for heavy duty applications. This hose has a high working pressure and is ozone resistant.
  • Two spiral plies and longitudinal synthetic cords - Provides higher working pressure and resists kinking and twisting.
  • Storage - All coils have PVC cores for easier dispensing. Hoses coil flat for easy storage.
  • Note: Not intended for use as a fire hose.
Part Number Size Size Hose ID Hose ID Approximate Wall Thickness Working Pressure Coil Length Weight
(in.) (mm) (in.) (mm) (in.) (PSI) (ft.) (Lbs/Coil)
IS150X300 1-1/2" 38.1mm 1.61" 40.9mm 0.0866" 150 PSI 300ft 69.0 lbs
IS200X300 2" 50.8mm 2.09" 53.1mm 0.0906" 150 PSI 300 ft 96.0 lbs
IS250X300 2-1/2" 63.5mm 2.58" 65.5mm 0.0945" 150 PSI 300 ft 123.0 lbs
IS300X300 3" 76.2mm 3.09" 78.5mm 0.0984" 150 PSI 300 ft 156.0 lbs
IS400X300 4" 101.6mm 4.10" 104.1mm 0.1102" 125 PSI 300 ft 228.0 lbs
IS600X300 6" 153.4mm 6.16" 156.5mm 0.1181" 115 PSI 300 ft 363.0 lbs
IS800X100 8" 204.7mm 8.15" 207.0mm 0.1220" 70 PSI 100 ft 162.0 lbs
IS800X300 8" 204.7mm 8.15" 207.0mm 0.1220" 70 PSI 300 ft 486.0 lbs
IS1000X100 10" 254.0 mm 10.12" 257.0mm 0.1300" 65 PSI 100 ft 195.0 lbs
