Dixon/Packo Sanitary Pumps
JRZL-Series | Rotary Lobe Pump

The JRZL Series are designed to provide complete access of the CIP solutions to all product contact surfaces.

All of the pumps are certified with EHEDG and 3A standards and can be cleaned completely through in-line CIP.

Pumps can be fitted with a variety of features and options to ensure the best performance will be achieved for your specific application.

Note: This item is customizable, please contact us for a personalized quote.
Specifications for Variant SKU: JRZL110 Dixon
Series: JRZL-Series
Material(s): 316L Stainless Steel
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards
Applications:
  • Food processing, dairy, beverage, pharmaceutical, personal care and industrial markets.
Available Options:
  • Seal Options: Single Mechanical TC vs TC, Double Mechanical TC vs TC, Single O-Ring, Double O-Ring, Triple Lip, Flush Option.
  • Elastomer Options: Nitrile Rubber, EPDM, FKM, Perfloure, Kalrez.

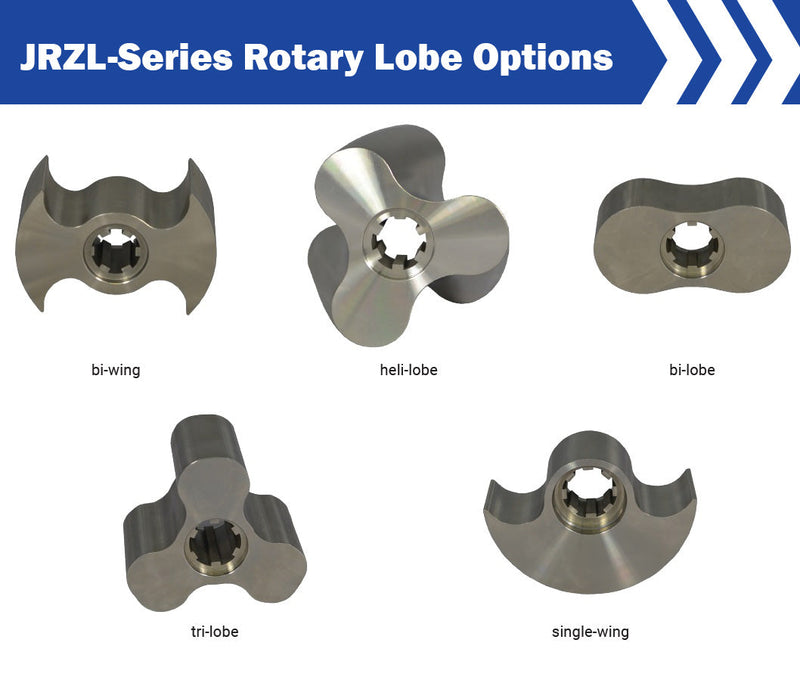

  • Interchangeable Lobe Options: Bi-Wing, Bi-Wing Hot Clearance (248°F to 356°F)(120°C to 180°C), Multi-Lobe.

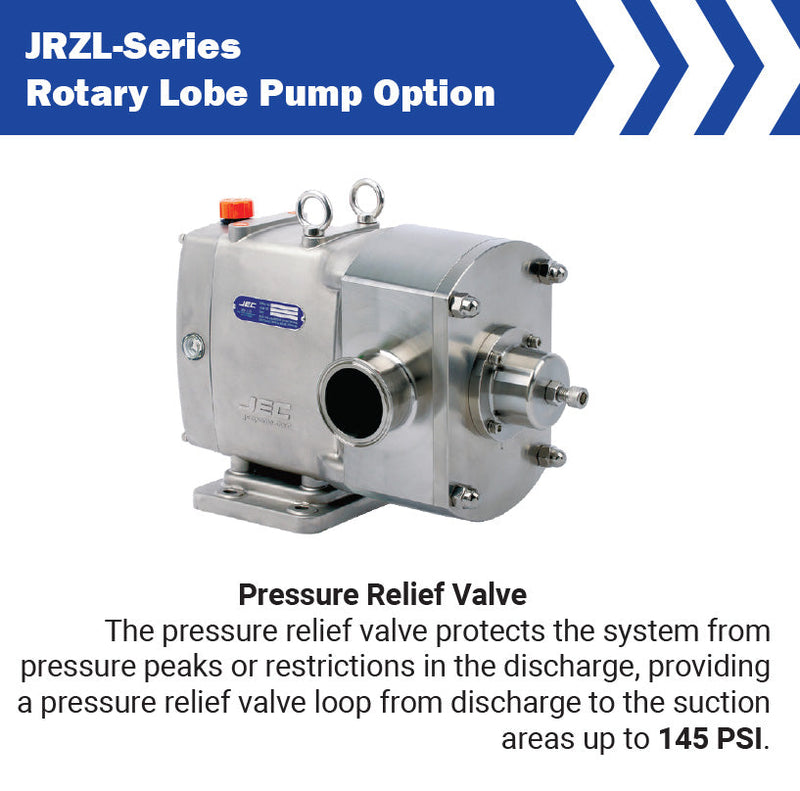

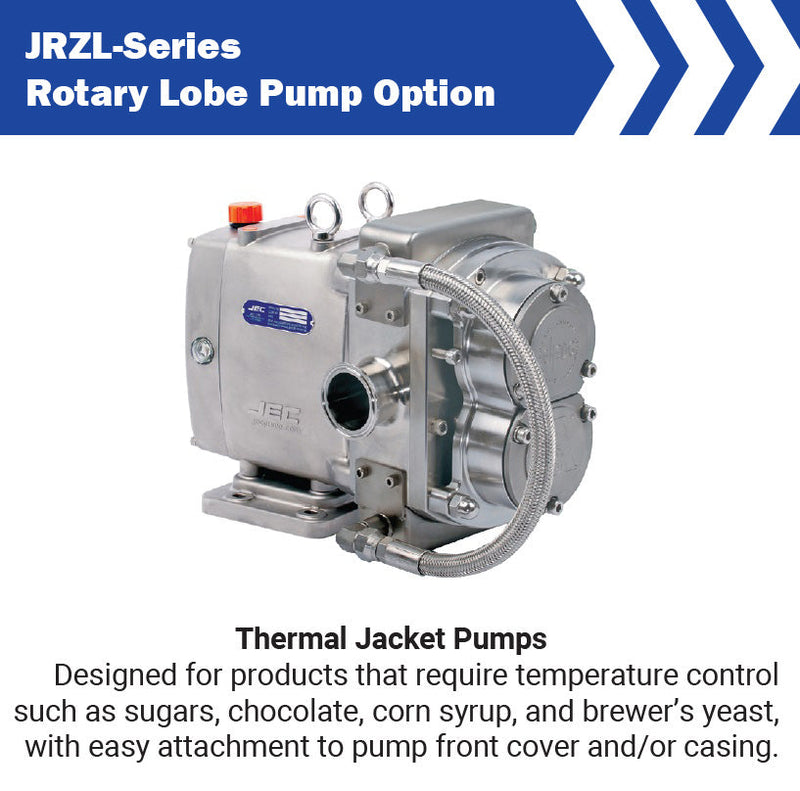

  • Additional Options: Thermal Jacket Front Cover, Thermal Jacket Casing, Pressure Relief Valve.
Construction:
  • All product contact parts are 316 stainless steel.
  • Gear Box: Stainless Steel
  • Clamp connection
Features:
  • Connection: Clamp (standard), others available upon request.
  • Small compact lightweight design equals less pump more performance. Gently handle low to high viscosity fluids.
  • Universal Mounting, pumps can be mounted with top/bottom shaft drive, vertical/horizontal inlet/outlet.
  • Stainless Steel Gear Box with single oil reservoir made from precision casting offers paint free and rust free long lasting durability.
  • Using helical timing gears, the rotors are driven at less vibration to extend pump efficiency and seal lifetime, even under high speed and high discharge pressure.
  • Front loading seals provide faster maintenance, easier cleaning and less down time. All seal options are designed for quick and simple retrofit.
  • Stainless steel shims located between gearbox and casing make it easy to adjust rotor clearance without having to completely disassemble the gear box.
  • A low-slip Bi-wing rotor maintains efficiency even on low viscosity products by means of a longer sealing path.
  • Multiple interchangeable lobe options available.
  • All product contact areas are standard 316L stainless steel. JRZL Series pumps are certified EHEDG and 3A.
  • Repair kits available.
Specifications:
  • Max Speed RPM: 1000.
  • Flow Displacement Gal/100 Rev: 1.32.
  • Viscosity Range: Up to 1,000,000 cPs.
  • Noise Level: 60 ~ 80 dB.
  • The JRZL-Series supplied with a single or double mechanical seal are 100% CIPable.
Literature:
Part Number Gal / Rev PSI Port Size Weight
JRZL110 0.01 300 PSI 1" 27 lb
Other Sizes of JRZL-Series Rotary Lobe Pumps
Part Number Gal / Rev PSI Port Size Weight
JRZL105 0.005 300 PSI 1" 27 lb
JRZL115 0.03 175 PSI 1-1/2" 42 lb
JRZL120 0.06 115 PSI 2" 115 lb
JRZL220 0.11 175 PSI 2" 175 lb
JRZL225 0.16 115 PSI 2-1/2" 113 lb
JRZL330 0.27 175 PSI 3" 200 lb
JRZL340 0.38 115 PSI 4" 227 lb
JRZL440 0.60 175 PSI 4" 397 lb
JRZL450 0.88 115 PSI 5" 463 lb
