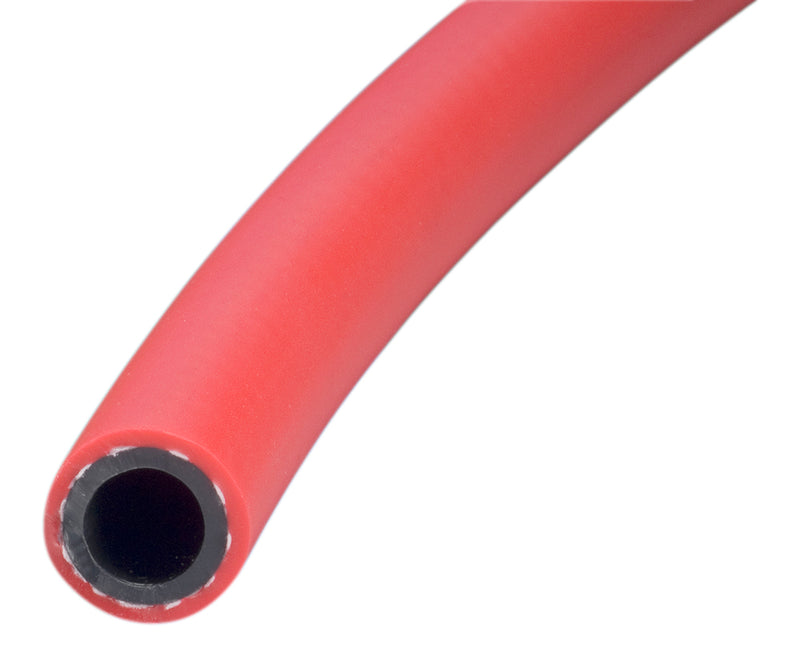

K1134-05X100 Kuriyama Kuri Tec Polyair K1134 Series Multi-Purpose Air & Water Hose - Red - 5/16" ID - .625" OD - 100ft

K1134-05X100 Kuri-Tec by Kuriyama | Polyair K1134 Series | Multi-Purpose Air & Water Hose | Red | 5/16" ID | .625" OD | 100ft Length

Save $9.41 Save $9.41
$87.41
$87.41 - $87.41
$87.41
$78.00
$78.00 - $78.00
$78.00

Kuriyama Kuri Tec® POLYAIR® Series K1134 Multi-Purpose Air & Water Hose - Red Our high quality flexible PVC compounds are uniquely blended to make this hose look and feel like comparable rubber hose and stay flexible at low temperatures. Its light weight makes it an ideal hose for air tool applications.

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: K1134-05X100 Kuriyama | 100 |
Brand: Kuri Tec, POLYAIR
Series: K1134 Series
Hose Color(s): Red
Internal Diameter: 0.3125in
Outer Diameter: 0.625in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Ideal for in-plant applications requiring color coding of hose supply lines, Transfer of air, water and mild water-soluble chemicals, Outdoor applications requiring a low temperature hose, Low pressure spray hose for water-soluble chemicals, General air supply line for pneumatic tools and paint spray systems SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: Spiral polyester yarn with additional longitudinal yarns - reduces elongation under pressure. Cover: PVC compound
Temperature Range: -15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • U. V. and weather resistant.
  • Excellent cold weather flexibility.
  • Easily re-coiled after use.
  • Medium/high oil resistance, complies with RMA's Class B Designation.
  • Non-marking pin-pricked cover.
  • Lightweight.
  • One-piece lengths.
  • Chemical resistance of PVC.
  • Silicone-free core and cover.
  • RoHS(15) compliant.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K1134-04X100 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 100 ft. Coil 8 lbs.
K1134-04X500 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 500 ft. Reel 44 lbs.
K1134-05X100 5/16" 8.0mm .625" 15.9mm 300 PSI 180 PSI 100 ft. Coil 13 lbs.
K1134-05X500 5/16" 8.0mm .625" 15.9mm 300 PSI 180 PSI 500 ft. Reel 67 lbs.
K1134-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 100 ft. Coil 11 lbs.
K1134-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 500 ft. Reel 58 lbs.
K1134-08X100 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 100 ft. Coil 18 lbs.
K1134-08X500 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 500 ft. Reel 93 lbs.
K1134-10X100 5/8" 15.9mm .906" 23.0mm 250 PSI 125 PSI 100 ft. Coil 19 lbs.
K1134-10X300 5/8" 15.9mm .906" 23.0mm 250 PSI 125 PSI 300 ft. Reel 64 lbs.
K1134-12X100 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI 100 ft. Coil 30 lbs.
K1134-12X300 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI 300 ft. Reel 96 lbs.
K1134-16X100 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI 100 ft. Coil 41 lbs.
K1134-16X300 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI 300 ft. Reel 130 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
