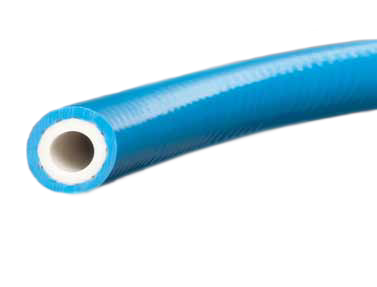

K1166-04X2.5K Kuriyama "Pneumo" Low Pressure Air Hose - 1/4" ID - 0.500" OD - 300PSI - 2500ft

K1166-04X2.5K by Kuriyama | "Pneumo" Low Pressure Air Hose | 1/4" ID | 0.500" OD | 300PSI | 2500ft Length

Minimum Order Quantity: 8 2500ft Lengths

Save $137.04 Save $137.04
$1,370.37
$1,370.37 - $1,370.37
$1,370.37
$1,233.33
$1,233.33 - $1,233.33
$1,233.33

Kuriyama Oil & Gas Products - "Pneumo" Low Pressure Air Hose

The Pneumo fathometer system or "Pneumo" is usually contained in the commercial diver's air manifold box. It uses a small volume of low pressure air to measure the diver's depth. Our high-quality PVC compounds enable this hose to perform extremely well as a lowpressure air hose versus standard rubber hoses. Its light weight makes it an ideal hose for Pneumo applications.

Package Quantity: 2500 FT

Specifications for Variant SKU: K1166-04X2.5K Kuriyama | 2500 |
Brand: Kuri Tec
Series: K1166 Series
Hose Color(s): Blue
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: PVC
Cover Construction: PVC
Application:
  • Diver's Pneumo hose used singly or with umbilicals.
  • General air supply line for pneumatic tools.
 SAE Rating: N/A
Other Ratings: N/A Tube: White general purpose PVC compound.
Reinforcement: Spiralled high tensile synthetic yarn. Cover: Bright blue general purpose PVC compound.
Temperature Range: -10 deg. F (-23 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Chemical resistance of PVC.
  • Compatible with brass re-usable fittings.
  • Extremely flexible and durable.
  • Lightweight.
  • Long continuous lengths.
  • Medium/high oil resistance, complies with RMA's Class B Designation.
  • Multiple colors to choose from.
  • Non-marking pin-pricked cover.
  • One-piece reel lengths.
  • Private branding available
  • RoHS compliant
  • Silicone-free core and cover
  • U. V. and weather resistant
  • The K1166 Series "Pneumo" hose can also be used as part of an umbilical hose group.
Part Number Nominal ID Nominal OD Max. Working Pressure* (PSI) Standard Lengths Approx. Weight per Pkg.
(in.) (mm.) (in.) (mm.) @ 70 deg. F (20 deg. C) @ 122 deg. F (50 deg. C) Reel Reel
K1166-04X2.5K 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI 2500 ft. 255 lbs.

* Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
